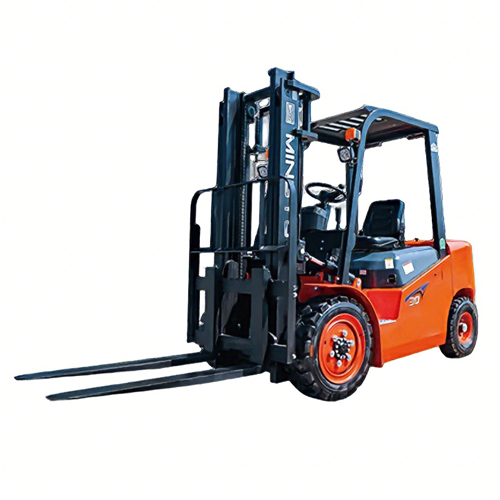

3.0 Ton Diesel Forklift 3m Lift Height 20% Gradeability Counterbalance Forklift Truck for Warehouse-M3.0

SELECT

Quantity :

Rental Service
Local After-sales Service
One-stop Sales Service
OEM/ODM Service

Power	Diesel
Rated lifting capacity	3000kg
Load center distance	500mm
Operation mode	RIDE-ON
Length(With fork)	3925mm
Length(Without fork)	2780mm
Width	1225mm
Height of non-lifting gantry	2140mm
Height of roof guard	2110mm
Max. height during operation	4262mm
Wheelbase	1810mm
Front overhang	441mm
Rear overhang	549mm
Front track width	1000mm
Rear track width	980mm
Ground clearance	165mm
Minimum turning radius	2520mm
Lift Height	3000mm
Fork adjustment range	260-1100mm
Gantry inclination angle	6/12°
Max. lifting speed (no load)	480mm/s
Max. lifting speed (full load)	440mm/s
Max. operating speed(no load)	20km/h
Max. operating speed(full load)	20km/h
Max. gradeability (full load)	20%
Overall weight	4170kg
Number of wheels	2/2
Tyre	Inflation
Front Tyre size	28*9-15
Rear Tyre size	6.5-10
Service Brakes	foot brake
Parking Brakes	hand brake
Engine Power	36.8kw
Speed	2500r/min
