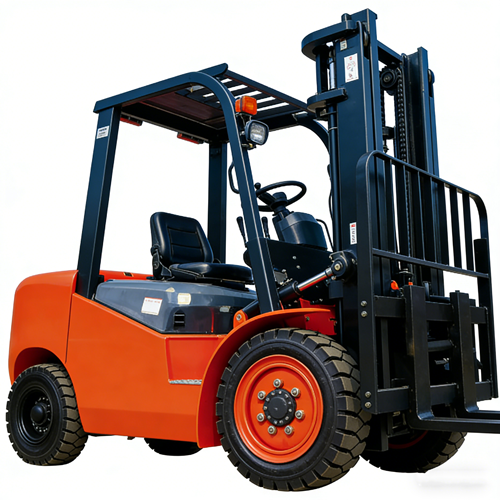

5 Ton Diesel Forklift Heavy Duty Material Handling Forklift Truck with 36.8kw Engine for Port Logistics-M50

SELECT

Quantity :

Rental Service
Local After-sales Service
One-stop Sales Service
OEM/ODM Service

Power	Diesel
Rated lifting capacity	5000kg
Load center distance	500mm
Operation mode	RIDE-ON
Length(With fork)	4075mm
Length(Without fork)	3055mm
Width	1380mm
Height of non-lifting gantry	2205mm
Height of roof guard	2215mm
Max. height during operation	4290mm
Wheelbase	1950mm
Front overhang	480mm
Rear overhang	575mm
Front track width	1080mm
Rear track width	985mm
Ground clearance	165mm
Minimum turning radius	3250mm
Lift Height	3000mm
Fork adjustment range	/
Gantry inclination angle	6/12°
Max. lifting speed (no load)	400mm/s
Max. lifting speed (full load)	350mm/s
Max. operating speed(no load)	22km/h
Max. operating speed(full load)	20km/h
Max. gradeability (full load)	15%
Overall weight	5710kg
Number of wheels	2/2
Tyre	Inflation
Front Tyre size	300-15
Rear Tyre size	700-12
Service Brakes	foot brake
Parking Brakes	hand brake
Engine Power	36.8kw
Speed	2500r/min
