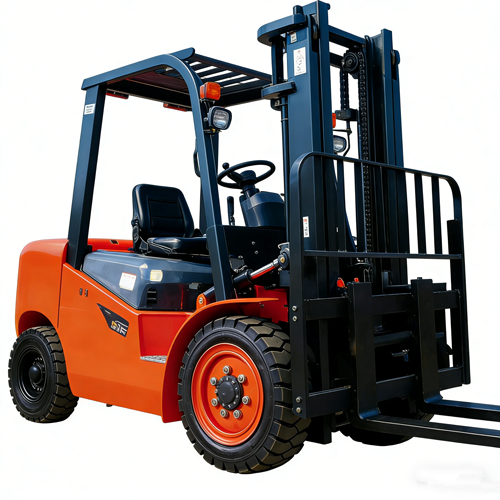

3.8 Ton Diesel Forklift 3000mm Lift Height Ride-on Counterbalance Forklift Truck for Warehouse & Construction-M38

SELECT

Number :

Rental Service
Local After Service
One-stop Sales Service
OED/ODM Service

Power	Diesel
Rated lifting capacity	3800kg
Load center distance	500mm
Operation mode	RIDE-ON
Length(With fork)	4120mm
Length(Without fork)	2945mm
Width	1228mm
Height of non-lifting gantry	2140mm
Height of roof guard	2100mm
Max. height during operation	4262mm
Wheelbase	1900mm
Front overhang	457mm
Rear overhang	550mm
Front track width	1000mm
Rear track width	980mm
Ground clearance	165mm
Minimum turning radius	2580mm
Lift Height	3000mm
Fork adjustment range	260-1100mm
Gantry inclination angle	6/12°
Max. lifting speed (no load)	480mm/s
Max. lifting speed (full load)	360mm/s
Max. operating speed(no load)	20km/h
Max. operating speed(full load)	20km/h
Max. gradeability (full load)	20%
Overall weight	4900kg
Number of wheels	2/2
Tyre	Inflation
Front Tyre size	28*9-15
Rear Tyre size	6.5-10
Service Brakes	foot brake
Parking Brakes	hand brake
Engine Power	36.8kw
Speed	2500r/min
