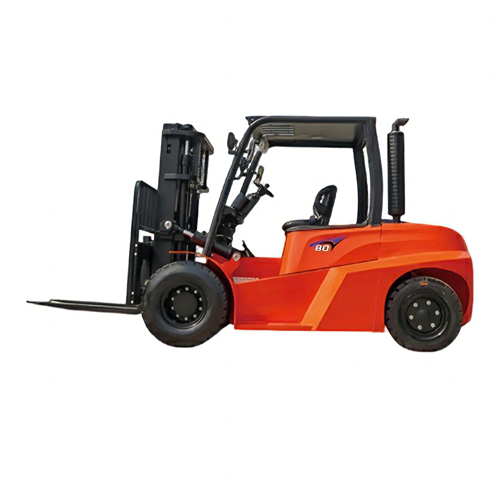

M80 8 Ton Diesel Forklift 3m Lift Height 36.8kw Heavy Duty Forklift Truck for Port & Warehouse Logistics

SELECT

Quantity :

Rental Service
Local After-sales Service
One-stop Sales Service
OEM/ODM Service

Power Type	Diesel
Rated Lifting Capacity	8000kg (8 Ton)
Load Center Distance	600mm
Operation Mode	RIDE-ON
Length (With Fork)	4990mm
Length (Without Fork)	3470mm
Width	1980mm
Height of Non-lifting Gantry	2240mm
Height of Roof Guard	2380mm
Max. Height During Operation	4210mm
Wheelbase	2330mm
Front Overhang	550mm
Rear Overhang	600mm
Front Track Width	1500mm
Rear Track Width	1750mm
Ground Clearance	200mm
Minimum Turning Radius	3200mm
Lift Height	3000mm
Fork Adjustment Range	300-1845mm
Gantry Inclination Angle	6/12°
Max. Lifting Speed (No Load)	380mm/s
Max. Lifting Speed (Full Load)	340mm/s
Max. Operating Speed (No Load)	28km/h
Max. Operating Speed (Full Load)	22km/h
Max. Gradeability (Full Load)	20%
Overall Weight	9950kg
Number of Wheels	4/2
Tyre Type	Inflation
Front Tyre Size	8.25-15-16
Rear Tyre Size	250-15-16
Service Brakes	Foot Brake
Parking Brakes	Hand Brake
Engine Power	36.8kw
Engine Speed	2500r/min
