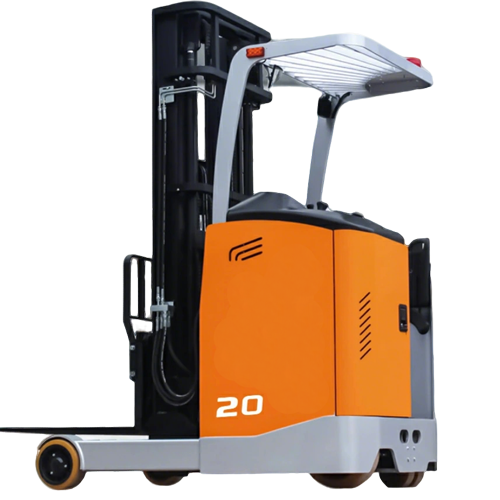

CQD20 2 Ton Stand Type Electric Reach Forklift 48V 3-6.5m Lift Height Narrow Aisle Forklift Truck

SELECT

Quantity :

Rental Service
Local After-sales Service
One-stop Sales Service
OEM/ODM Service

Model Number	CQD20
Power Type	Electric (48V)
Rated Load Capacity	2000 kg (2 Ton)
Load Center Distance	500 mm
Operation Type	Stand Type
Overall Length (With Fork)	2550 mm
Overall Length (Without Fork)	1880 mm
Overall Width	1250 mm
Fork Face Min. Ground Clearance	2200 mm
Free Lift Height	1600 mm
Max Lift Height	6500 mm (6.5m)
Max Height When Lifting	7500 mm
Height of Overhead Guards	2350 mm
Wheelbase	1450 mm
Reach Distance	550 mm
Min Ground Clearance	85 mm
Min Turning Radius	1750 mm
Fork Tilting Angle (Front/Rear)	3/5°
Lifting Speed (Unload)	350 mm/s
Lifting Speed (Load)	260 mm/s
Max Travel Speed (Unload)	9 km/h
Max Travel Speed (Load)	8 km/h
Max Gradeability	≤12%
Total Weight (With Battery)	3100 kg
Wheel Type	Polyurethane (PU)
Driving Motor Power	5.5 kw
Lifting Motor Power	7.5 kw
Battery Capacity	48V/320Ah
Charger Specification	48V/120A
Brake Type	Electric Brake
