Feature |

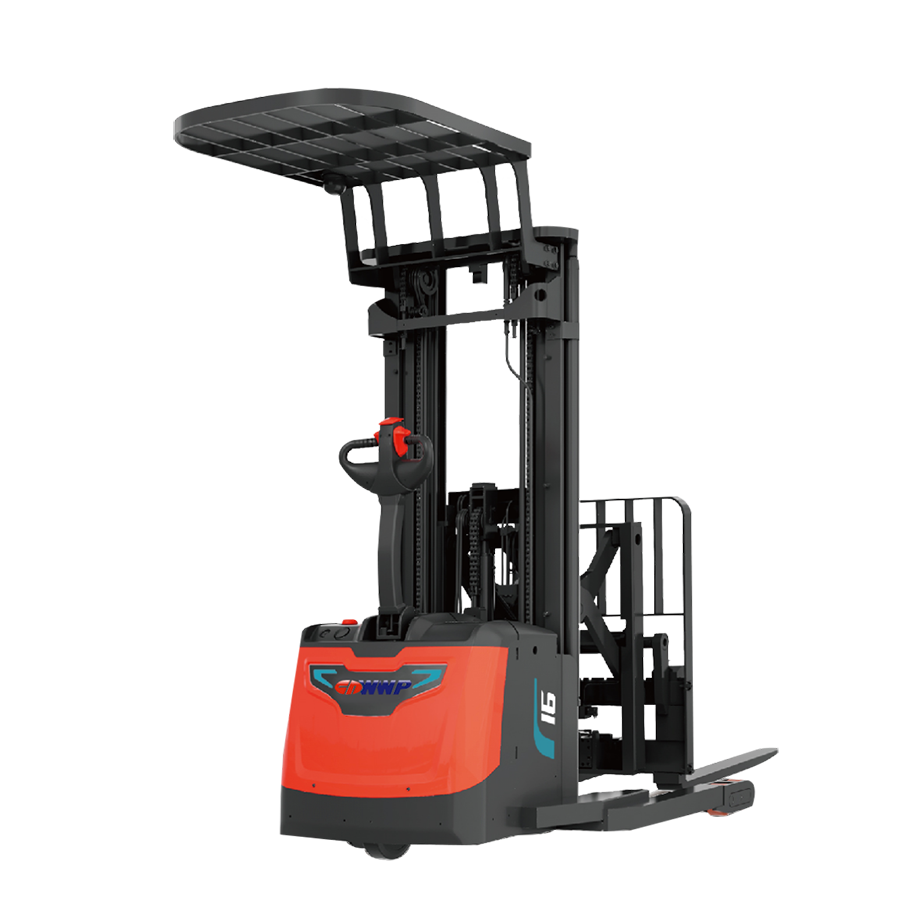

Model | CQDH16-UD |
Operating type | Walkie |
Load capacity | 1600Kg |
Load center | 500mm |
Wheel base | 1478mm |
Reach distance | 0-600mm |
Wheels |
Wheels type | PU |
Driving wheel size | Φ248mmX75mm |
Bearing wheel size | Φ126mmX75mm |
Wheel quantity | 1x+4 |
Track width | 1325mm |
Distance between support arms | 1225mm |
Dimensions |
Min.fork lowered height | 55mm |
Standard mast lift height | 3600/4500/6000(mm) |
Max extend height | 4785/5685/7148(mm) |
Mast lowered height | 1948/2248/2748(mm) |
Overall length | 2225mm |
Overall width | 1435mm |
Fork dimension: length x width x thickness | 1070mmx100mmx40mm |
Outside width between forks | 200mm-755mm |
Fork tilt angle(F/R) | 4/3° |
Min.ground clearance | 48.5mm |
Min.Aisle width for pallets 800x1200 | 2690mm |
Min.Aisle width for pallets 1000x1200 | 2640mm |
Min.Turning radius | 1566mm |
Performance |
Travel speed,laden/unladen | 3.5/4.0km/h |
Lifting speed,laden/unladen | 130/230mm/s |
Lowering speed,laden/unladen | 130/230mm/s |
Gradeability,laden/unladen | 5/12% |
Service brake type | Electromagnetic/Regenerative |
Motor and battery |
Traction motor rating | AC 3.0KW |
Lift motor rating | DC 3.0KW |
Battery voltage | 24v |
Battery capacity | 345Ah |
Controller | QEXPEND |
Weight |
Battery weight(+-5%) | 300Kg |
Service weight(with battery) | 2290Kg |
