Feature

Model

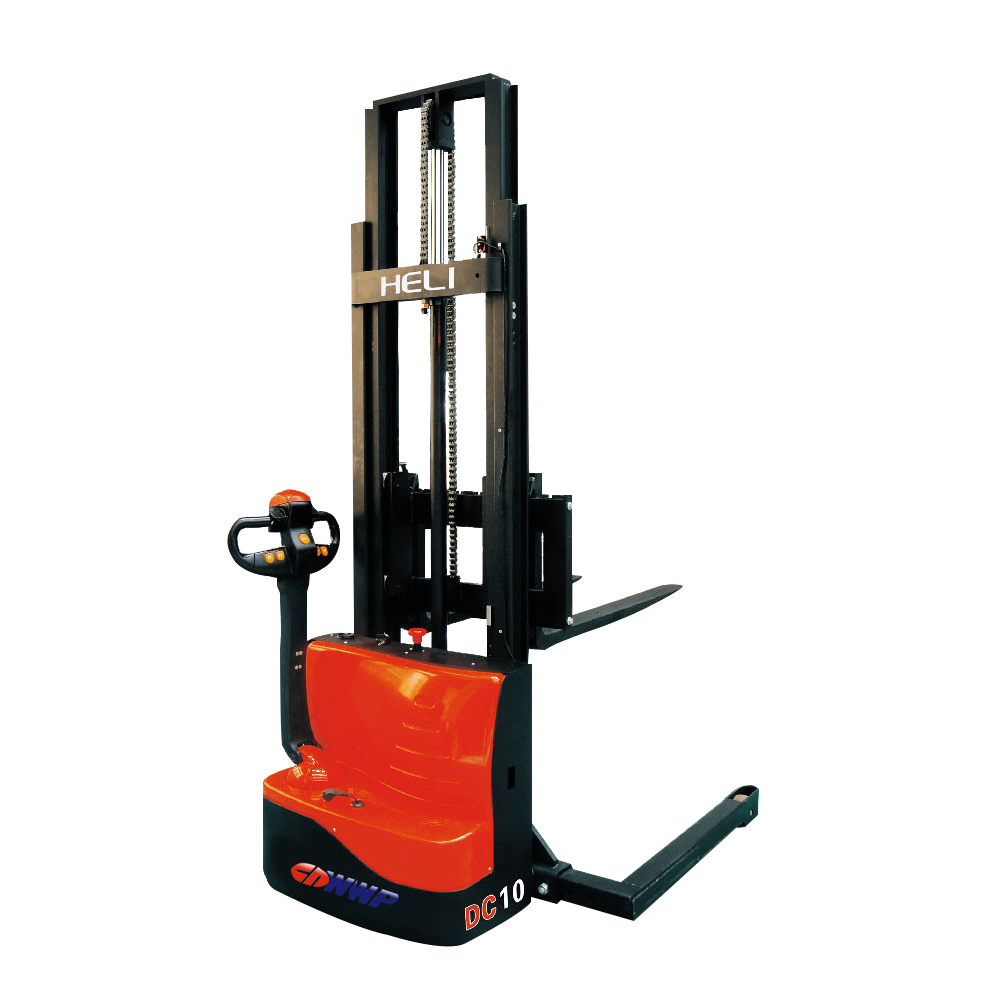

CTD10

Configuration No.

050

Mast type

2-stage

Operating type

Walkie

Load capacity

1000kg

Load center

600mm

Wheel base

1204mm

Wheels

Wheels type

PU

Wheel quantity

Driving wheel/Balance wheel/Bearing wheel

1/1/2

Driving wheel size

Φ252mmX67mm

Balance wheel size

Φ115mmX55mm

Bearing wheel size

Φ115mmX52mm

Dimensions

Standard lift height

2000/2500/3000/3300(mm)

Max extend height

2593/3093/3593/3893(mm)

Mast lowered height

1620/1870/2120/2270(mm)

Lowered fork height

55mm

Fork size(length/width/thickness)

1070/100/40(mm)

Overall length

1721mm

Overall width

940mm

Outside width between forks

200-812mm

Inside width between forks

0-612mm

Min.Turning radius

1411mm

Min.Aisle width for pallets 800x1200

1970mm

Min.Aisle width for pallets 1000x1200

2010mm

Min. ground clearance

50mm

Performance

Travel speed,laden/unladen

3/3.5km/h

Lift speed,laden/unladen

120/180mm/s

Lowering speed,laden/unladen

120/120mm/s

Gradeability,laden/unladen

5/7%

Electrical configuration

Drive motor/ Lift motor

DC0.63KW/DC2.0KW

Battery voltage/capacity

24/85(V/Ah)

Brake

Electromagnetic /Regenerative

Controller

HELI(Optional CURTIS)

Weight

Battery weight(+-5%)

48Kg

Service weight(with battery)

710Kg
