Feature |

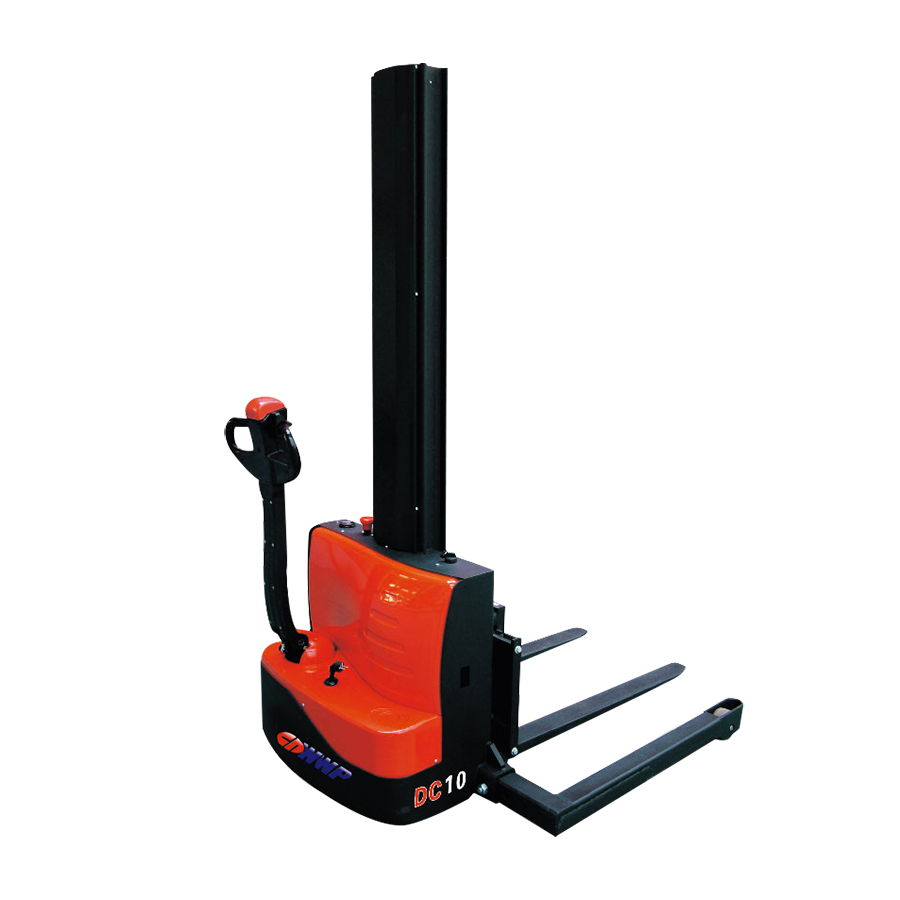

Model | CTD10 |
Configuration No. | 090 |
Mast type | single-stage |
Operating type | Walkie |
Load capacity | 1000kg |
Load center | 600mm |
Wheel base | 1134mm |
Wheels |
Wheels type | PU |
Wheel quantity Driving wheel/Balance wheel/Bearing wheel | 1/1/2 |
Driving wheel size | Φ252mmX67mm |
Balance wheel size | Φ115mmX55mm |
Bearing wheel size | Φ115mmX52mm |
Dimensions |
Standard lift height | 1600/1950(mm) |
Max extend height | 2055/2405(mm) |
Mast lowered height | 2055/2405(mm) |
Lowered fork height | 55mm |
Fork size(length/width/thickness) | 1070/100/40(mm) |
Overall length | 1640mm |
Overall width | 940mm |
Outside width between forks | 200-812mm |
Inside width between forks | 0-612mm |
Min.Turning radius | 1344mm |
Min.Aisle width for pallets 800x1200 | 1894mm |
Min.Aisle width for pallets 1000x1200 | 1936mm |
Min. ground clearance | 50mm |
Performance |
Travel speed,laden/unladen | 3/3.5km/h |
Lift speed,laden/unladen | 120/180mm/s |
Lowering speed,laden/unladen | 120/120mm/s |
Gradeability,laden/unladen | 5/7% |
Electrical configuration |
Drive motor/ Lift motor | DC0.63KW/DC2.0KW |
Battery voltage/capacity | 24/85(V/Ah) |
Brake | Electromagnetic /Regenerative |
Controller | HELI(Optional CURTIS) |
Weight |
Battery weight(+-5%) | 48Kg |
Service weight(with battery) | 514Kg |
