Feature |

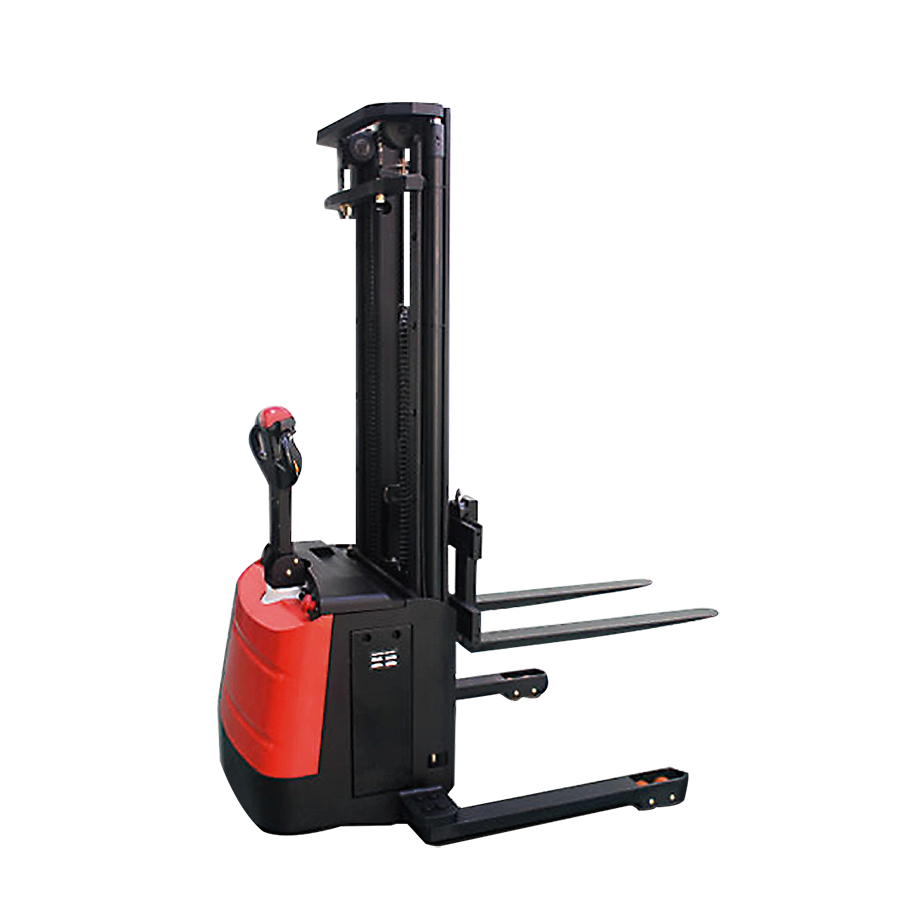

Model | CTD16 |
Configuration No. | 960H |
Type | Narrow legs |
Mast type | Full free 3-stage |
Operating type | Walkie |
Load capacity | 1600Kg |
Load center | 600mm |
Wheel base | 1330mm |
Wheels |
Wheels type | PU |
Wheel quantity Driving wheel/Balance wheel/Bearing wheel | 1/0/4 |
Driving wheel size | Φ248mmX75mm |
Balance wheel size | Φ84mmX70mm |
Dimensions |
Standard lift height | 3700/3900/4200/4500/4700/5000(mm) |
Max extend height | 4200/4400/4700/5000/5200/5500(mm) |
Mast lowered height | 1800/1900/1985/2085/2135/2235(mm) |
Lowered fork height | 55mm |
Fork size(length/width/thickness) | 1070/100/40(mm) |
Overall length | 1910mm |
Overall width | 1470mm |
Min.Turning radius | 1500mm |
Min.Aisle width for pallets 800x1200 | 1850mm |
Min.Aisle width for pallets 1000x1200 | 2070mm |
Min. ground clearance | 50mm |
Performance |
Travel speed,laden/unladen | 3.5/4.0km/h |
Lift speed,laden/unladen | 130/180mm/s |
Lowering speed,laden/unladen | 100/180mm/s |
Gradeability,laden/unladen | 5/7% |
Electrical configuration |
Drive motor/ Lift motor/Steering motor | AC1.5V/DC3.0V/DC 0.15V |
Brake | Electromagnetic /Regenerative |
Controller | ZAPI |
Battery | Lead batteries | Lithium battery |
Battery voltage/capacity | 24V/270Ah | 24V/200Ah |
Battery weight(+-5%) | 245Kg | 100Kg |
Service weight(with battery) | 1510Kg | 1365Kg |
