Feature |

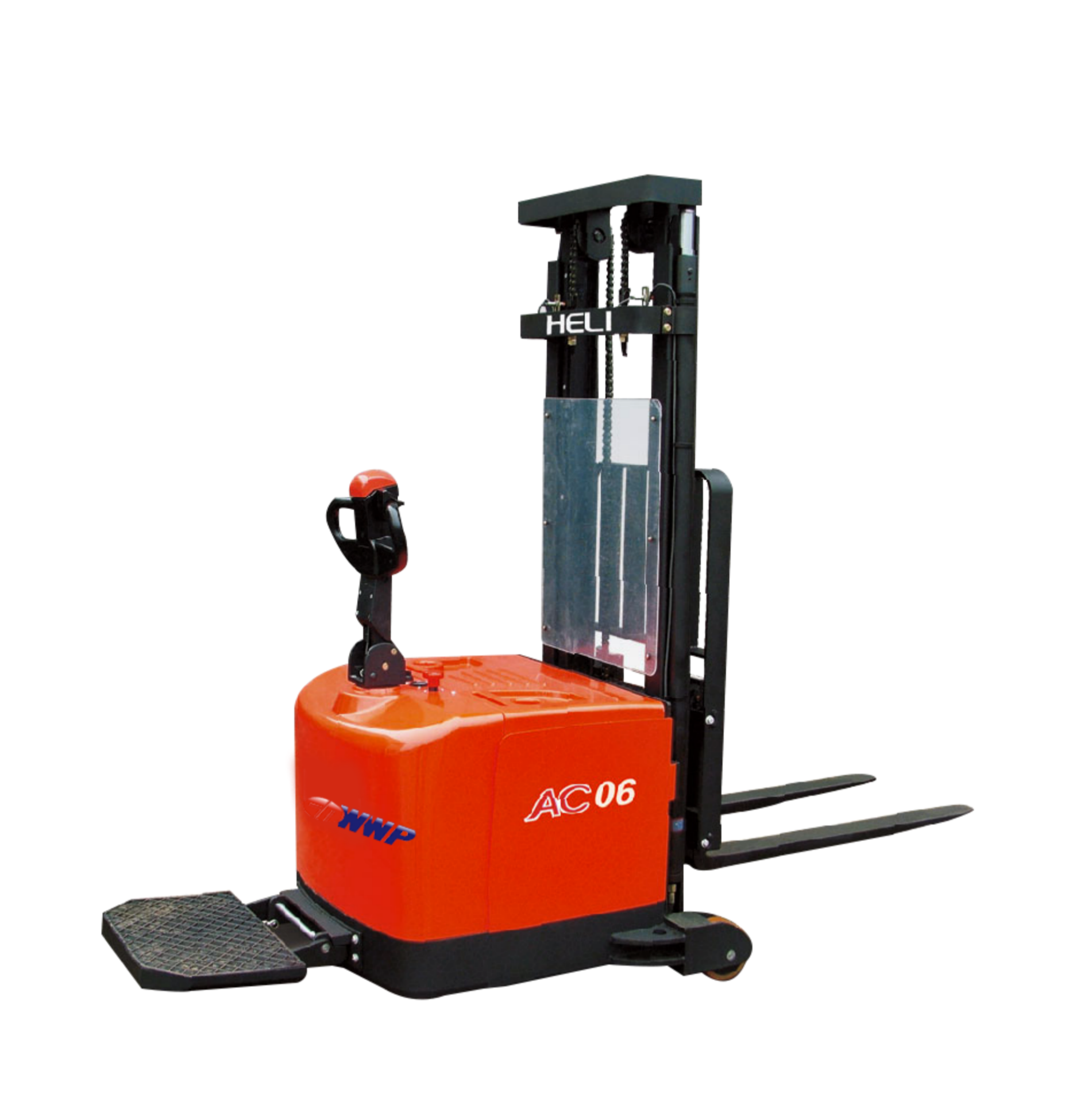

Model | CPD06 |
Configuration NO. | 970 |
Mast type | 2 - stage |
Operating type | Walkie/Stand On |
Load capacity | 600 kg |
Load center | 500 mm |
Wheel base | 794 mm |
Wheels |
Wheels type | PU |
wheel quantitl/Driving wheel/Balance wheel/Bearing wheel | 1/0/2 |
Driving wheel size | Φ248×75 mm |
Balance wheel size | ----- |
Bearing wheel size | Φ160×76 mm |
Dimension |
Standard lift height | 1400mm/2000mm/2500mm/3000mm/3300 mm |
Max extended height | 2400mm/3000mm/3500mm/4000mm/4300 mm |
Mast lowered height | 1230mm/1580mm/1780mm/2030mm/2130 mm |
Lowered fork height | 55 mm |
Fork size(length/width/thickness) | 1070mm/100mm/40 mm |
Overall length | 2240mm/2660 mm |
Overall width | 1015 mm |
Outside width between forks | 200mm - 660 mm |
Inside width between forks | 0mm - 460 mm |
Min.turning radius | 971mm/1436 mm |
Min.Aisle width for pallets 800×1200 | 2095mm/2474 mm |
Min.Aisle width for pallets 1000×1200 | 2282mm/2662 mm |
Min.ground clearance | 80mm |
Performance |
Travel speed,laden/unladen | 5/5.5km/h |
Lift speed,laden/unladen | 130/230/ mm/s |
Lowering speed,laden/unladen | 130/230/ mm/s |
Gradeability,laden/unladen | 5/7 % |
Electrical configuration |
Drive motor / Lift motor/Steering motor | AC1.5/DC3/DC0.15 KW |
Battery voltage | 24 V |
Battery capacity | 270 Ah |
brake | Electromagnetic/Regenerative |
controller | ZAPI |
Weight |
Battery weight | 247 kg |
Service weight with battery | 1561 kg |
