Feature |

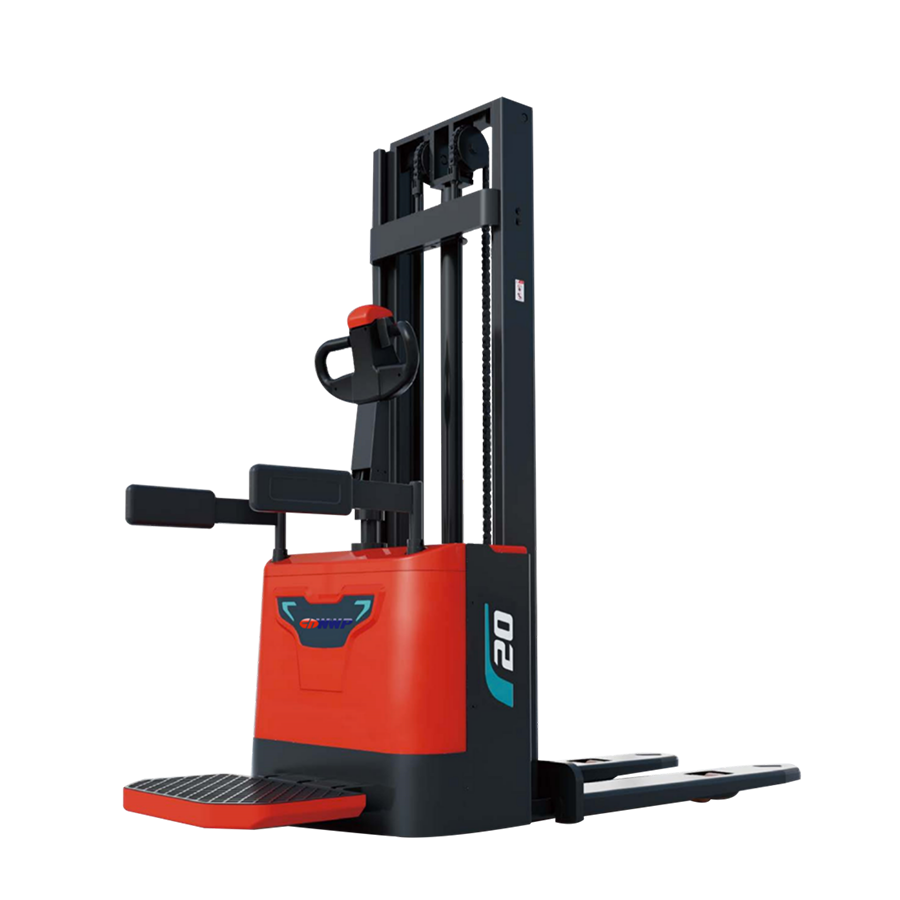

Model | CDD16-TF | CDD20-TF |
Operating type | Stand on | Stand on |
Load capacity | 1600 kg | 2000 kg |
Load center | 600 mm | 600 mm |
Wheel base | 1145 mm | 1145 mm |
Wheels |
Wheels type | PU |
Wheel quantity | 1/2/4 | 1/2/4 |
Driving wheel size | Φ195×70 mm | Φ195×70 mm |
Balance wheel size | Φ116×55 mm | Φ116×55 mm |
Bearing wheel size | Φ73×60 mm | Φ73×60 mm |
Dimension |
Standard lift height | 3000/3500/4000 mm | 3000/3500/4000 mm |
Max extend height | 3473/3972/4472 mm | 3473/3972/4472 mm |
Max lowered height | 2012/2627/2512 mm | 2012/2627/2512 mm |
Min fork lowered height | 83 mm | 83 mm |
Outside width between forks | 550/600/650/885 mm | 550/600/650/885 mm |
Inside width between forks | 180/230/280/315 mm | 180/230/280/315 mm |
Fork size (length/width) | 1150/185/60 mm | 1150/185/60 mm |
Overall length | 2214/1812 mm | 2214/1812 mm |
Overall width | 780 mm | 780 mm |
Min. Turning radius | 1393 mm | 1393 mm |
Min.Aisle width for pallets 800×1200 | 2224 mm | 2224 mm |
Min.Aisle width for pallets 1000×1200 | 2291 mm | 2291 mm |
Performance |
Travel speed,laden/unladen | 4/5 km/h | 4/5 km/h |
Lift speed,laden/unladen | 85/155 mm/s | 105/175 mm/s |
Lowering speed,laden/unladen | 144/104 mm/s | 115/110 mm/s |
Gradeability,laden/unladen | 6/10 % | 6/10 % |
Electrical configuration |
Drive motor / Lift motor | BLDC1.0/DC2.2 | BLDC1.2/DC2.2 |
Battery voltage / capacity | 48/65 V/Ah | 48/65 V/Ah |
Charger specification | 48/8 V/Ah | 48/8 V/Ah |
Controller | HELI | HELI |
Brake | Electromagnetic/Regenerative |
Weight |
Battery weight | 15×4 | 15×4 |
Service weight with battery | 710 | 725 |
Others |
Steering type | Mechanical | Mechanical |
