Feature |

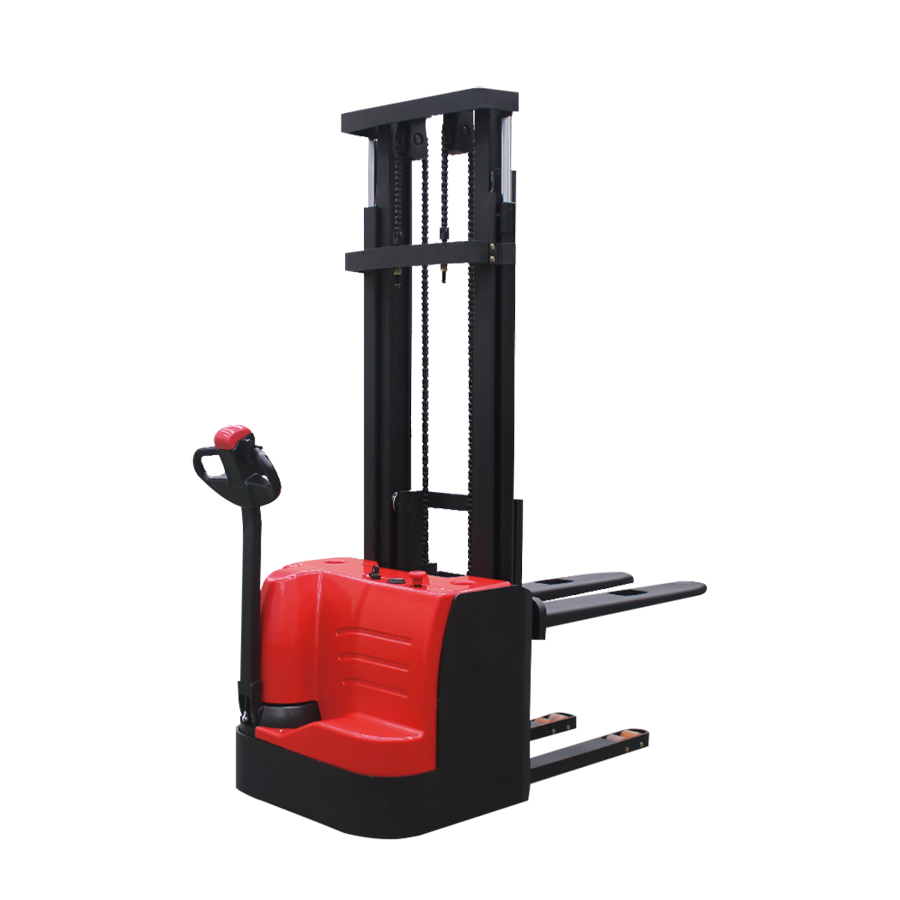

Model | CDD16-070E | CDD20-070E |
Operating type | Walkie |
Load capacity | 1600kg | 2000kg |
Load center | 600mm |
Wheel base | 1280mm/1300mm |
Wheels |
Wheels type | PU |
Wheel quantity Driving wheel/ Balance wheel/Bearig wheel | 1/2/4 |
Driving wheel size | Φ180mmX70mm |
Balance wheel size | Φ115mm550mm |
Bearing wheel size | Φ84mmX70mm |
Dimension |
Standard lift height | 2500 mm, 3000 mm, 3300 mm |
Max extend height | 3015 mm, 3515 mm, 3815 mm |
Mast retracted height | 1810 mm, 2060 mm, 2110 mm |
Min fork lowered height | 90 mm |
Outside fork width | 550 mm, 600 mm, 650 mm, 885 mm |
Inside fork width | 180 mm, 230 mm, 280 mm, 315 mm |
Fork size (length/width/thickness) | 1150 mm,185 mm,55 mm |
Overall length | 1875 mm,1895mm |
Overall width | 850 mm |
Min turning radius | 1612 mm, 1632 mm |
Min Aisle width (800×1200 pallet) | 2236 mm, 2256 mm |
Min Aisle width (1000×1200 pallet, 1200 fork) | 2304 mm, 2324 mm |
Performance |
Travel speed ,laden/unladen | 4.5/5 km/h |
Lifting speed ,laden/unladen | 120/120mm/s | 160/200mm/s |
Lowering speed ,laden/unladen | 105/100 mm/s |
Gradeability ,laden/unladen | 6/10 % |
Electrical configuration |
Drive motor/ Lift motor | AC1.2/DC2.2 kW | AC1.2/DC3 kW |
Battery voltage / capacity | 24 / 210 V/ Ah |
Charger specification | 24/50 V/A |
Controller | HELI |
Weight |
Battery weight | 192kg |
Service weight with battery | 937kg | 1035kg |
Others |
Noise level | ≤69 db(A) |
Steering type | Mechanical |
Drive control type | Two-stage (single cylinder) | Two-stage (dual cylinder) |
