Feature |

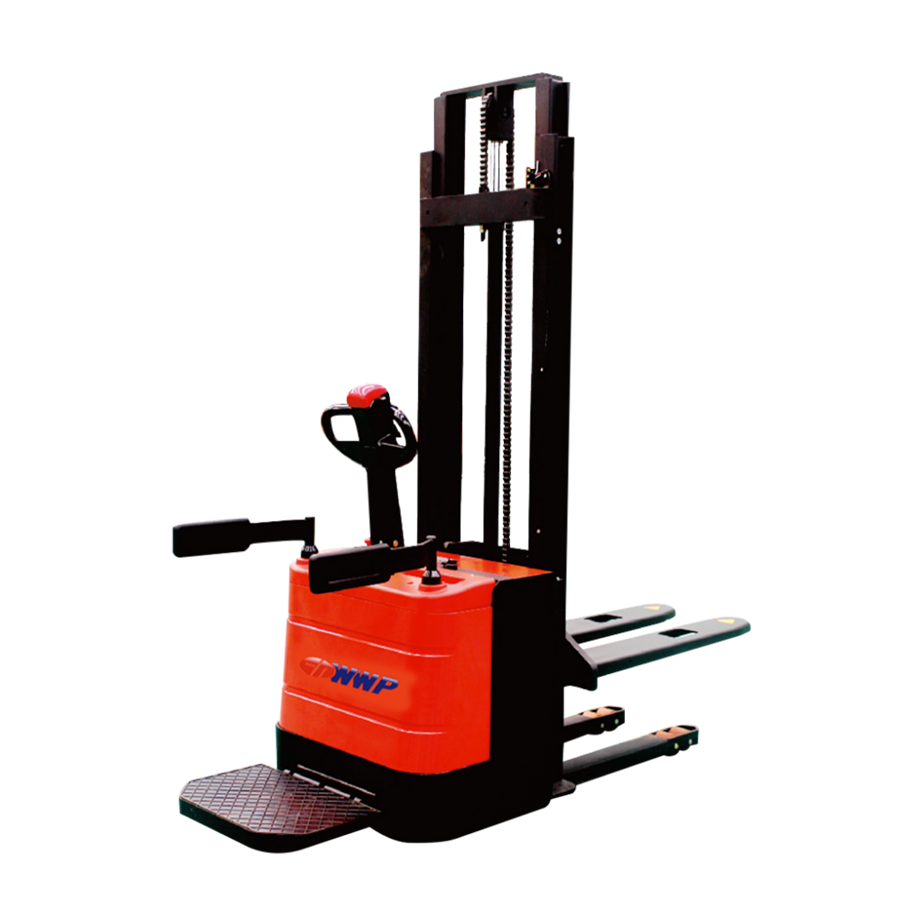

Model | CDD12 |
Configuratio NO. | 070F |
Mast type | 2-stage |
Operating type | stand on |
Load capacity | 1200kg |
Load center | 600mm |
Wheel base | 1390mm |
Wheels |
Wheels type | PU |
Wheel quantity Driving wheel/Balance wheel /Bearing wheel | 1/1/4 |
Driving wheel size | Φ228mmX75mm |
Bearing wheel size | Φ84mmX70mm |
Balance wheel size | Φ125mmX55mm |
Dimension |
Standard lift height | 2000mm/2500mm/3000mm/3300mm |
Max extend height | 2385mm/2885mm/ 385mm/3685mm |
Mast lowered height | 1550mm/1800mm/2050mm/2200mm |
Lowered fork height | 90mm |
Fork size(length/width/thickness) | 1150mm/ 185mm/ 55mm |
Overall length | 2456mm |
Overall width | 790mm |
Outside width between forks | 550mm/600mm/650mm/685mm |
Intside width between forks | 180mm/230mm/280mm/315mm |
Min.Turning radius | 1695mm/2040mm |
Min.Alsle width for pallets 800*1200 | 2210mm/ 2575mm |
Min.Alsle width for pallets 1000*1200 | 2240mm/2595mm |
Min.ground clearance | 30mm |
Performance |
Travel speed,laden/unladen | 6/6 km/h |
Lift speed,laden/unladen | 100/200/ mm/s |
Lowering speed,laden/unladen | 120/120 mm/s |
Gradeability,laden/unladen | 6/8 % |
Electrical configuration |
Drive motor / Lift motor /Steering motor | AG1.5/DC2.0/DC 0.2 kw |
Battery voltage | 24V |
Battery capacity | 210 AH |
Brake | Electromagnetic/Regenerative |
Controller | ZAPI |
Weight |
Battery weight | 235kg |
Service weight with battery | 1090kg |
