Feature
|
Model

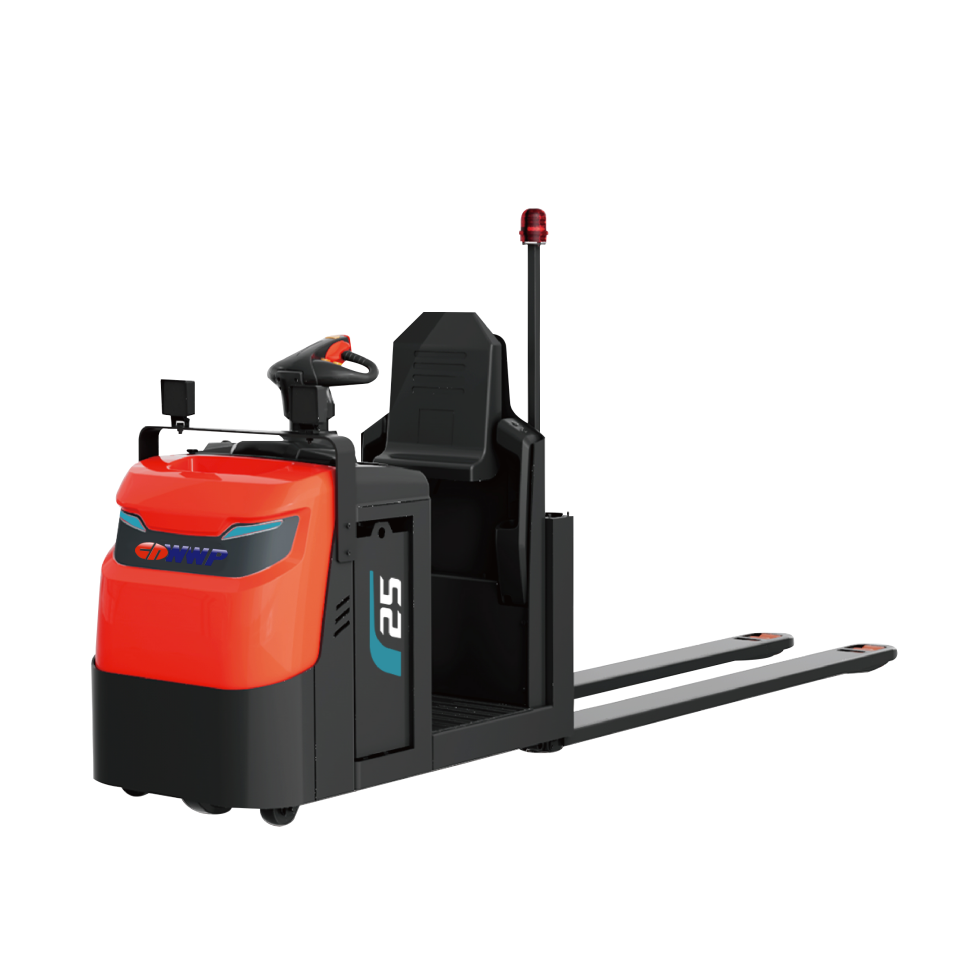

| OPD20/25-581(UGD)
|
Operating type
| Ride On
|
Load capacity
| 2000kg
| 2500kg
|
Load center
| 1200mm
|
Wheel base
| 3544mm
|
Wheels
|
Wheels type
| PU
|
Wheel quantity-Driving wheel/Balance wheel /Bearing wheel
| 1/2/4
|
Driving wheel size
| Φ248mmX75mm
|
Bearing wheel size
| Φ84mmX80mm
|
Balance wheel size
| Φ115mmX55mml
|
Dimension
|
Min.fork lowered height
| 85mm
|
Max.fork lifting height
| 205mm
|
Max.lifting height
| 120mm
|
Qutside width between forks
| 650mm
|
Inside width between forks
| 280mm
|
Fork length
| 2400mm
|
Fork width
| 185mm
|
Fork thickness
| 55mm
|
Overall length
| 3922mm
|
Overall width
| 754mm
|
Overall height(With handle)
| 1743mm
|
Min.Turning radius
| 3048mm
|
Min.Aisle width for pallets 800x1200
| 4216mm
|
Min.Aisle width for pallets 1000x2400
| 4261mm
|
Performance
|
Travel speed,laden/unladen
| 9/12km/h
|
Lift speed,laden/unladen
| 30/35/ mm/s
|
Lowering speed,laden/unladen
| 40/35/ mm/s
|
Gradeability,laden/unladen
| 6/16 %
|
Service brake type
| Electric
|
Electrical configuration
|
Traction motor rating at S2 60 min
| AC 3 kw
|
Lift motor rating at S3 15%
| DC 2.2 kw
|
Battery
| Lead-acid batteny
| Lithium battery（Optional）
|
Battery voltage / capacity
| 24/280 V/AH (24/345 Optional)
| 24/200 V/AH
|
Charger specification
| 24/50 V/A
| 24/100 V/A
|
Weight
|
Battery weight(±5%)
| 247kg
| 105kg
|
Service weight with battery
| 1310kg
| 1170kg
|
Others
|
Sound level
| ≤69
|
Steering type
| Electronic
|
Drive control type
| AC
|
Controuer
| QEXPEND
|
