Feature |

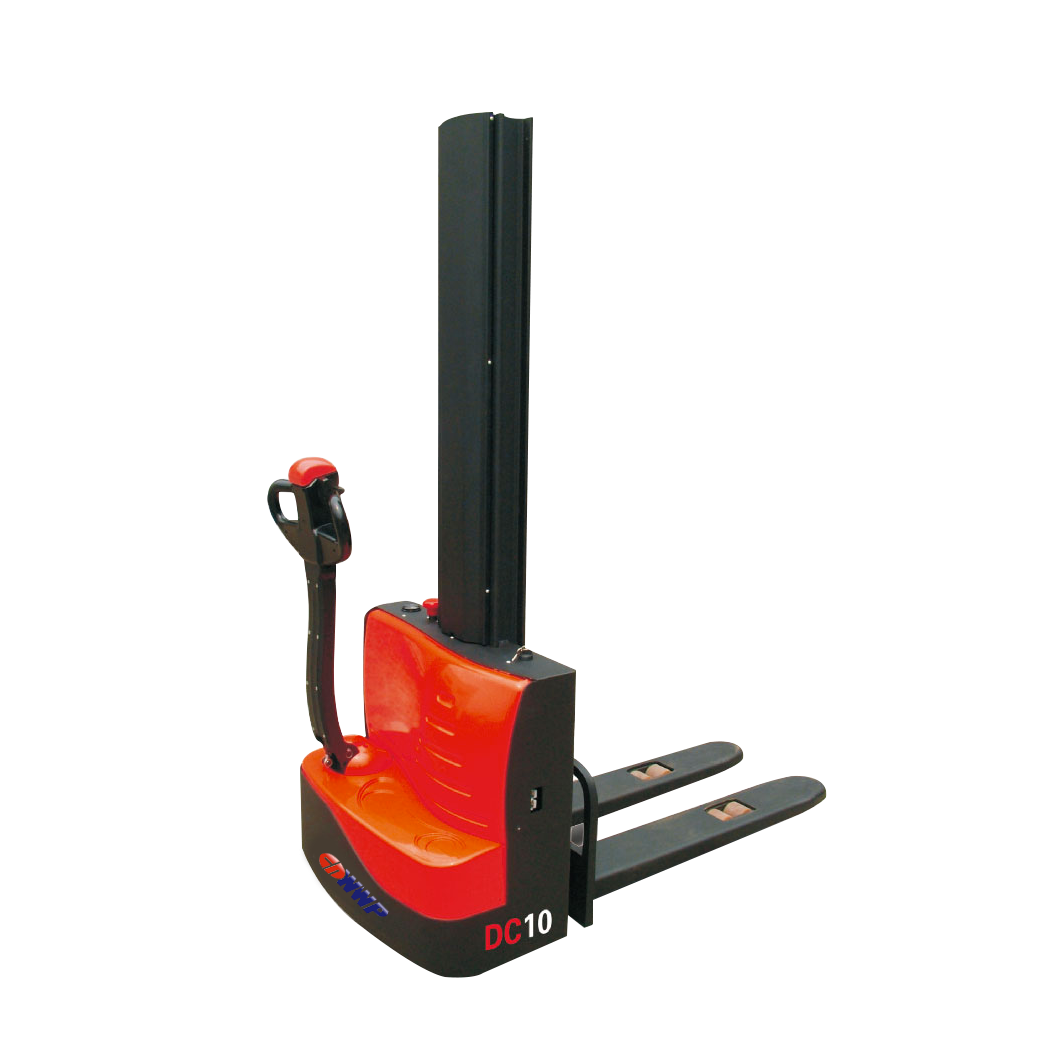

Model | CDD10 |
Configuration NO. | 080 |
Mast type | single-stage |
Operating type | Walkie |
Load capacity | 1000kg |
Load center | 600mm |
Wheel base | 1052mm |
Wheels |
Wheels type | PU |
Wheel quantity Driving wheel/Balance wheel /Bearing wheel | 1/1/4 |
Driving wheel size | Φ252mmX67mm |
Bearing wheel size | Φ84mmX70mm |
Balance wheel size | Φ115mmX55mml |
Dimension |
Standard lift height | 1600/1950mm |
Max extend height | 2055/2405mm |
Mast lowered height | 2055/2405mm |
Lowered fork height | 90mm |
Fork size(length/width/thickness) | 1150（1220）/185/55mm |
Qutside width between forks | 550/600/650/685mm |
Inside width between forks | 180/230/280/315mm |
Overall length | 1634mm |
Overall width | 790mm |
Min.Turning radius | 1262mm |
Min.Aisle width for pallets 800x1200 | 1841mm |
Min.Aisle width for pallets 1000x1200 | 1883mm |
Min.ground clearance | 30mm |
Performance |
Travel speed,laden/unladen | 3/3.5km/h |
Lift speed,laden/unladen | 120/180/ mm/s |
Lowering speed,laden/unladen | 120/120/ mm/s |
Gradeability,laden/unladen | 5/7 % |
Electrical configuration |
Drive motor / Lift motor | DC0.63/DC2.0kw |
Battery voltage | 24v |
Battery capacity | 85Ah |
brake | Electromagnetic/Regenerative |
Controller | HELI（or CURTIS） |
Weight |
Battery weight | 48kg |
Service weight with battery | 463kg |
