Feature

Model

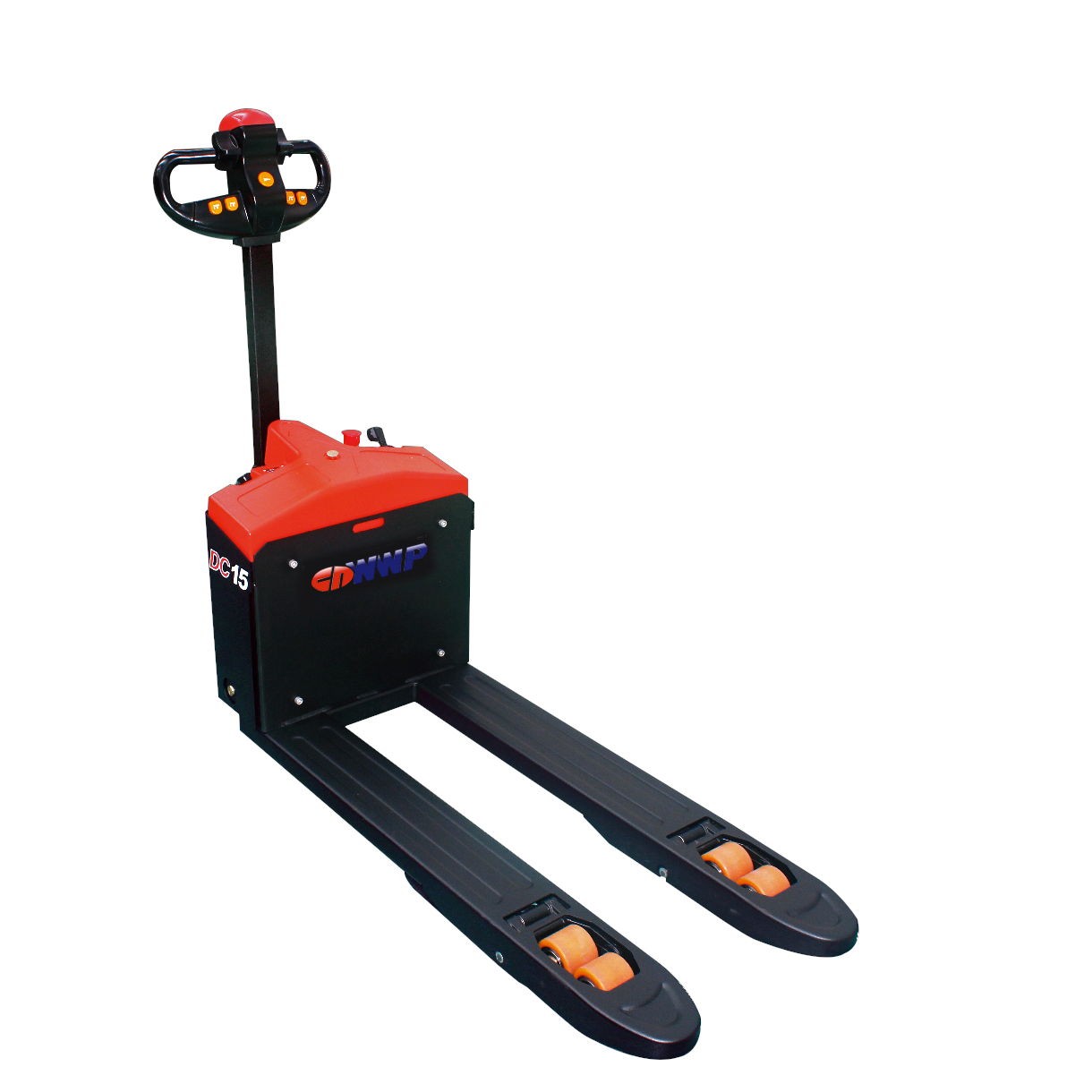

CBD15

Configuration No

170J

Load capacity

1500kg

Load center

600mm

Wheel base

1285mm

Operating type

Walkie

Wheels

Wheels type

PU

Wheel quantity Driving wheel/Balance wheel /Bearing wheel

1/0/4

Driving wheel size

Φ210mmX70mm

Bearing wheel size

-

Balance wheel size

Φ84mmX80mm

Dimension

Min.fork lowered height

85mm

Max.fork lifting height

205mm

Max.lifting height

120mm

Qutside width between forks

550mm/685mm

Inside width between forks

230mm/365mm

Fork length

1150mm/1200mm

Fork width

160mm

Fork thickness

75mm

Overall length

1702mm

Overall width

685mm

Overall height(With handle)

1213mm

Overall height(Without handle)

634mm

Min.Turning radius

1435mm

Min.Aisle width for pallets 800x1200

1817mm

Min.Aisle width for pallets 1000x1200

1855mm

Performance

Travel speed,laden/unladen

3.5/4 km/h

Lift speed,laden/unladen

35/40 mm/s

Lowering speed,laden/unladen

80/75 mm/s

Gradeability,laden/unladen

5/7 %

Electrical configuration

Drive motor/Lift motor /Steering motor

DC0.63/DC0.8 kw

Battery voltage/capacity

24/75 V

Brake

Electromagnetic /Regenerative

Controller

CURTIS

Weight

Battery weight(±5%)

199kg

Service weight with battery

-
