Feature |

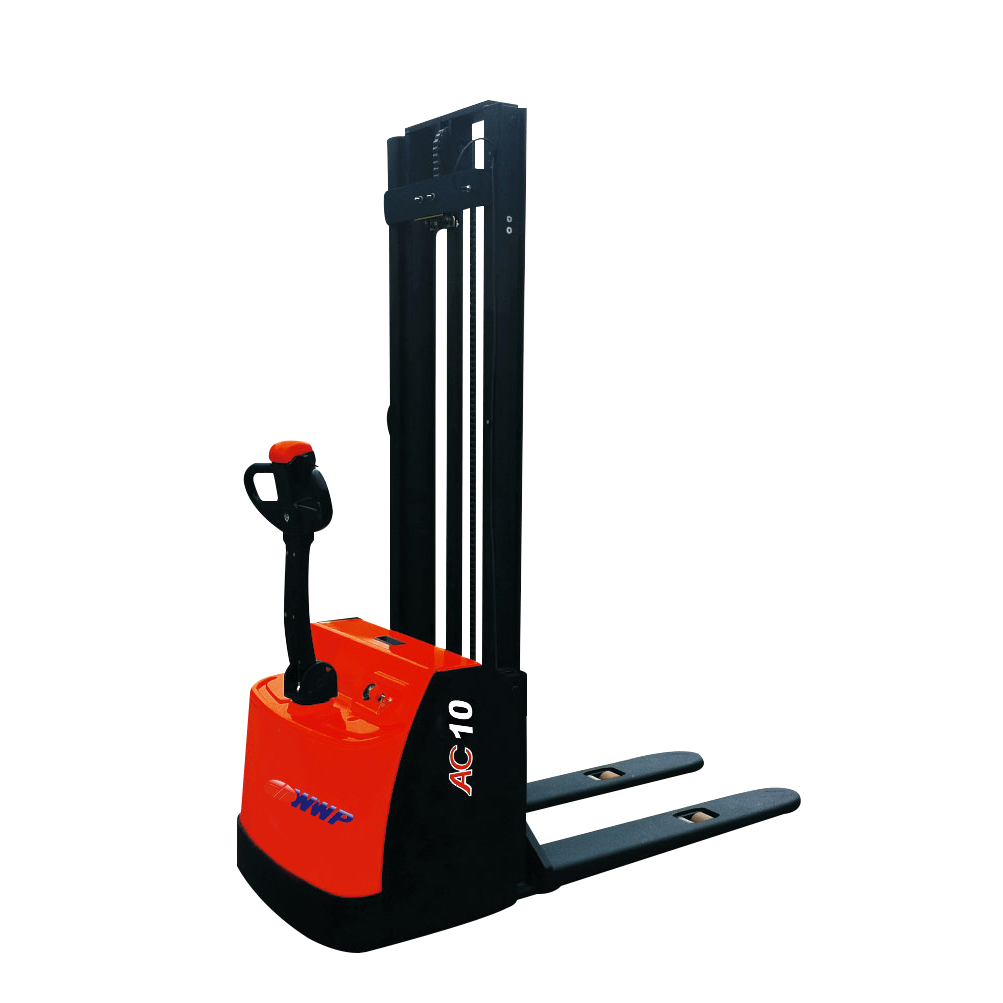

Model | CDD10 |
Configuration NO. | 060 |
Mast type | 2-stage |
Operating type | Walkie |
Load capacity | 1000kg |
Load center | 600mm |
Wheel base | 1285mm |
Wheels |
Wheels type | PU |
Wheel quantity Driving wheel/Balance wheel /Bearing wheel | 1/1/4 |
Driving wheel size | Φ248mmX75mm |
Bearing wheel size | Φ84mmX70mm |
Balance wheel size | Φ115mmX55mml |
Dimension |
Standard lift height | 2000/2500/3000/3300/3600mm |
Max extend height | 2515/3015/3515/3815/4115mm |
Mast lowered height | 1560/1810/2060/2210/2360mm |
Lowered fork height | 90mm |
Fork size(length/width/thickness) | 1150（1220）/185/55mm |
Qutside width between forks | 550/600/650/685mm |
Inside width between forks | 180/230/280/315mm |
Overall length | 1898mm |
Overall width | 806mm |
Min.Turning radius | 1475mm |
Min.Aisle width for pallets 800x1200 | 2045mm |
Min.Aisle width for pallets 1000x1200 | 2084mm |
Min.ground clearance | 30mm |
Performance |
Travel speed,laden/unladen | 3.5/4km/h |
Lift speed,laden/unladen | 120/180/ mm/s |
Lowering speed,laden/unladen | 120/120/ mm/s |
Gradeability,laden/unladen | 5/7 % |
Electrical configuration |
Drive motor / Lift motor | AC0.95/DC2.0kw |
Battery voltage | 24v |
Battery capacity | 210Ah |
brake | Electromagnetic/Regenerative |
Controller | ZAPI |
Weight |
Battery weight | 192kg |
Service weight with battery | 913kg |
