Feature |

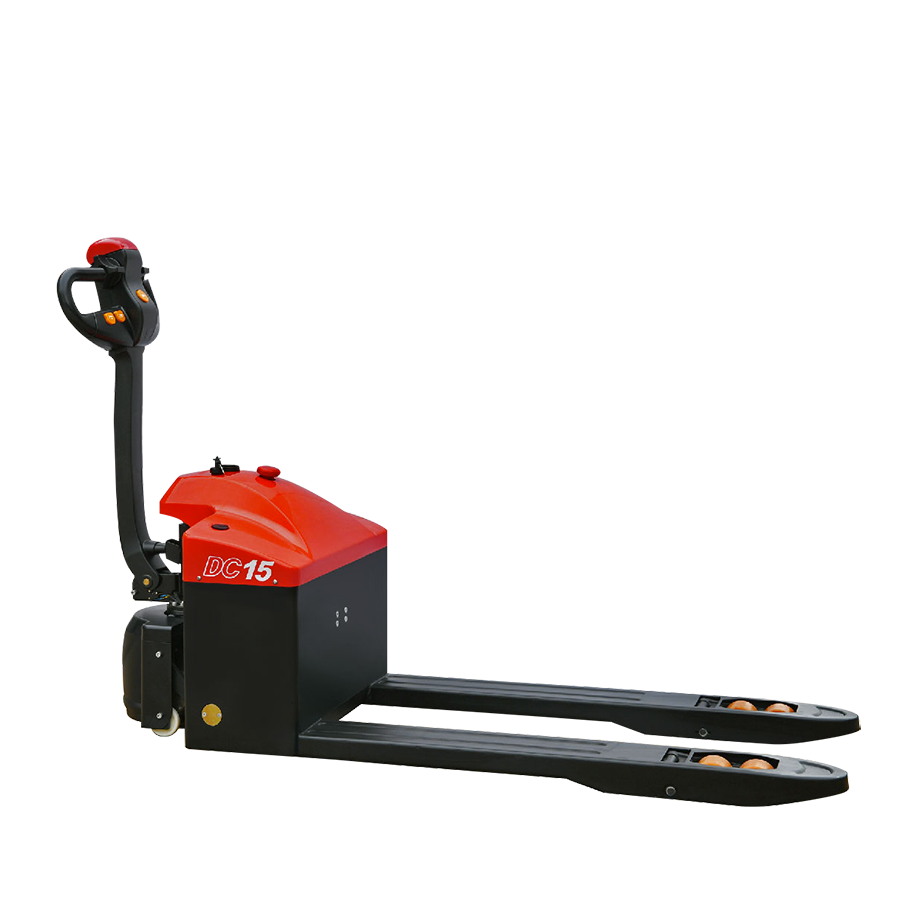

Model | CBD15 |
Configuration No. | 170H |
Operating type | Walkie |
Load capacity | 1500kg |
Load center | 600mm |
Wheel base | 1303mm |
Wheels |
Wheels type | PU |
Wheel quantity Driving wheel/Balance wheel/Bearing wheel | 1/2/4 |
Driving wheel size | Φ210mmX70mm |
Balance wheel size | Φ80mmX17mm |
Bearing wheel size | Φ84mmX70mm |
Dimensions |
Min.fork lowered height | 85mm |
Max.fork lifting height | 205mm |
Max.lifting height | 120mm |
Outside width between forks | 550/685(mm) |
Inside width between forks | 230/365(mm) |
Fork length | 1150/1200(mm) |
Fork width | 160mm |
Fork thickness | 75mm |
Overall length | 1776mm |
Overall width | 698mm |
Overall height(With Handle) | 1294mm |
Overall height(Without Handle) | 648mm |
Min.Turning radius | 1593mm |
Min.Aisle width for pallets 800x1200 | 1939mm |
Min.Aisle width for pallets 1000x1200 | 1972mm |
Performance |
Travel speed,laden/unladen | 3.5/4km/h |
Lift speed,laden/unladen | 30/40mm/s |
Lowering speed,laden/unladen | 45/40mm/s |
Gradeability,laden/unladen | 5/7% |
Electrical configuration |
Drive motor/ Lift motor | DC0.63KW/DC0.8KW |
Battery voltage/capacity | 24/85(V/Ah) |
Brake | Electromagnetic /Regenerative |
Controller | CURTIS |
Weight |
Battery weight(+-5%) | 48Kg |
Service weight(with battery) | 222Kg |
