Feature |

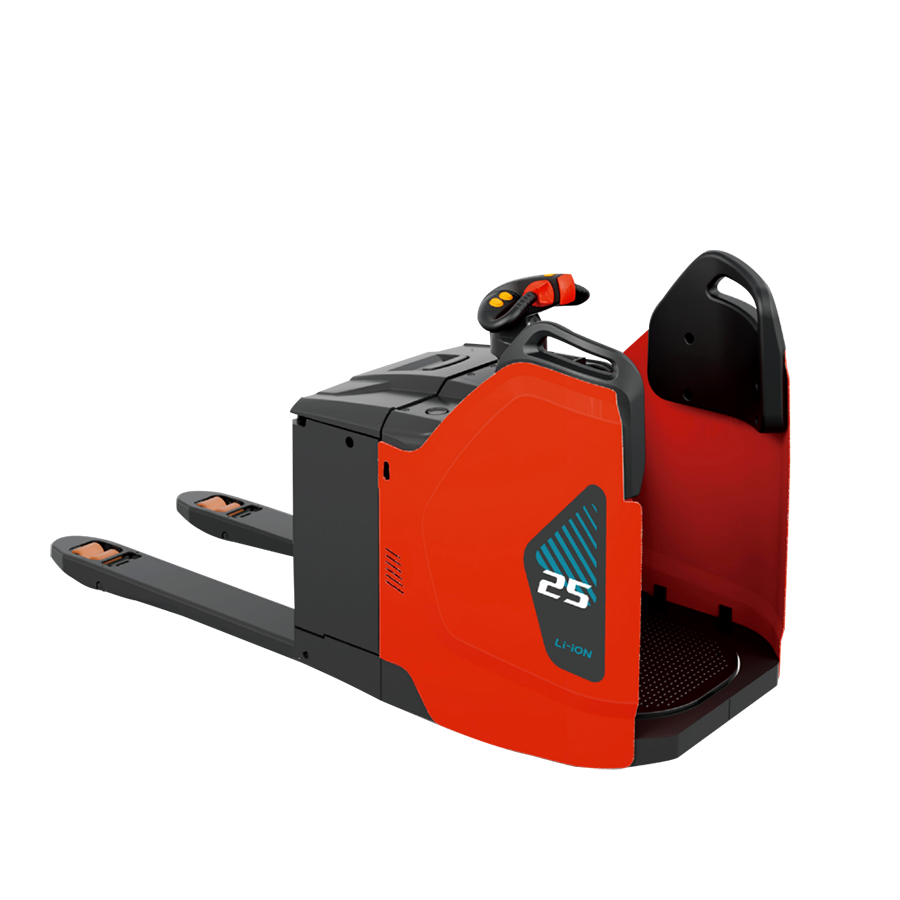

Model | CBD20/25-UGD |
Operating type | Ride-on |
Load capacity | 2000/2500 kg |
Load center | 600mm |
Wheel base | 1530mm |
Wheels |
Wheels type | PU |
Wheel quantity no.(x=driven)front/rear | 1/2/4 |
Driving wheel size | Φ248mmX75mm |
Bearing wheel size | Φ84mmX80mm |
Balance wheel size | Φ115mmX55mm |
Dimension |
Min.fork lowered height | 85mm |
Max.fork lifting height | 205mm |
Max.lifting height | 120mm |
Qutside width between forks | 550mm/685mm |
Inside width between forks | 210mm/345mm |
Fork length | 1150mm/1200mm |
Fork width | 170mm |
Fork thickness | 55mm |
Overall length | 2385mm/2435mm |
Overall width | 812mm |
Overall height(With handle) | 1238mm |
Min.Turning radius | 2210mm/2260mm |
Min.Aisle width for pallets 800x1200 | 2850mm/2900mm |
Min.Aisle width for pallets 1000x1200 | 2943mm/2993mm |
Performance |
Travel speed,laden/unladen | 10/11km/h |
Lift speed,laden/unladen | 30/35 mm/s |
Lowering speed,laden/unladen | 40/35 mm/s |
Gradeability,laden/unladen | 10/15 % |
Service brake type | Electromagnetic |
Electrical configuration |
Traction motor rating at S2 60 min | AC2.5 kw |
Lift motor rating at S3 15% | DC 2.2 kw |
Battery | Lead-acid battery | Lithium battery(Optional) |
Batteryvoltage /capacity | 24/270 V/Ah | 24/200 V/Ah |
Charger specification | 24/50 V/A | 24/100 V/A |
Weight |
Battery weight(±5%) | 247kg | 105kg |
Service weight with battery | 865kg | 723kg |
Others |
Sound level | ≤69dB(A) |
Steering type | Electronic |
Drive control type | AC |
Controller | QEXPEND |
