Feature

Model

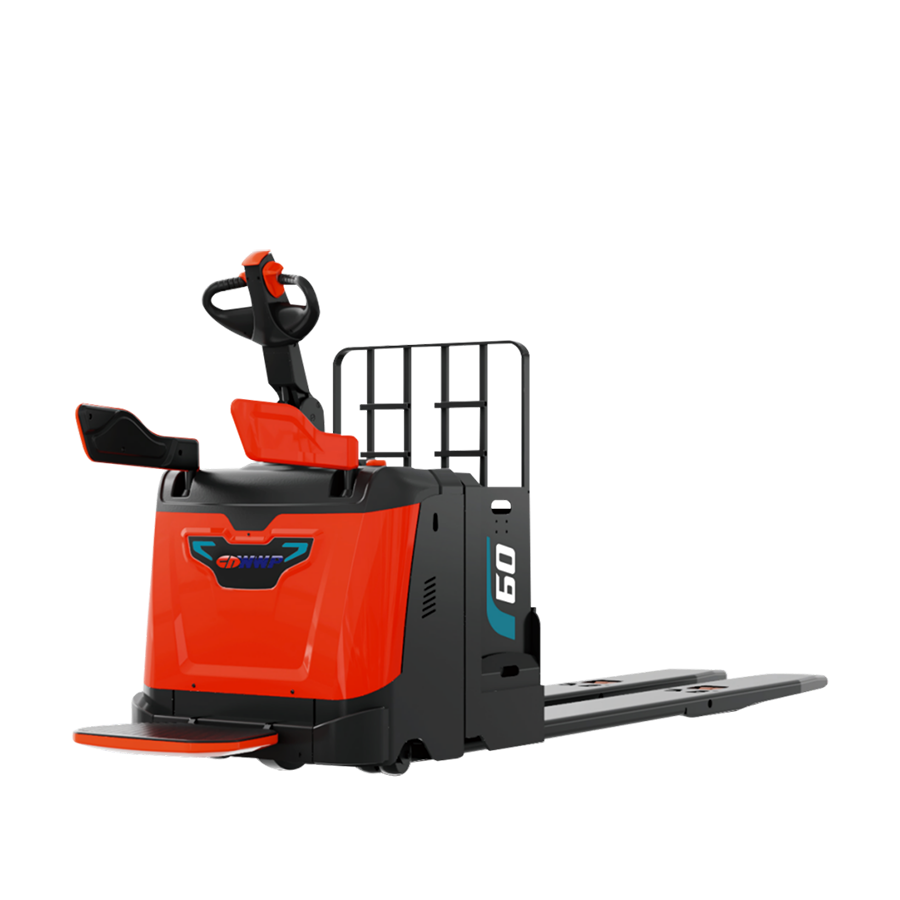

CBD60-VRD

Load capacity

6000kg

Operating type

Ride-on

Wheels

Wheels type

PU

Dimension

Max.fork lifting height

205mm

Max.lifting height

115mm

Qutside width between forks

550mm/600mm/650mm/680mm

Fork length/Fork width/Fork thickness

2373mm/250mm/75mm

Overall length

3367mm/3790mm

Overall width

850mm

Overall height(With handle)

1487mm

Min.Turning radius

2472mm/2875mm

Min.Aisle width for pallets 800x1200

3496mm/3899mm

Min.Aisle width for pallets 1000x1200

3539mm/3942mm

Performance

Travel speed,laden/unladen

5/5km/h

Lift speed,laden/unladen

5/7mm/s

Electrical configuration

Battery voltage / capacity

24/360V/AH

Lift motor rating

AC 3.0kw/DC2.2kw

Weight

Battery weight(±5%)

302kg

Service weight with battery

1150kg
