Feature |

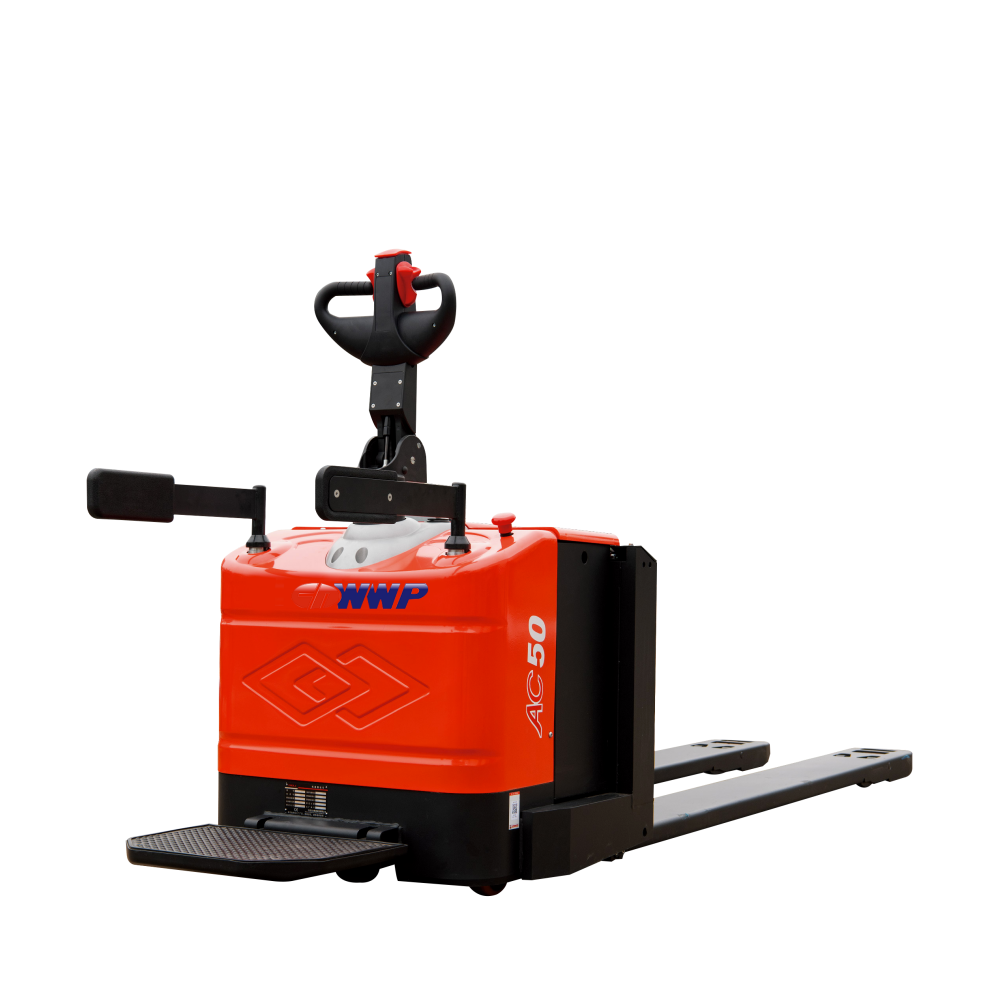

Model | CBD40-460 | CBD50-460 |
Operating type | Stand on |
Load capacity | 4000kg | 5000kg |
Wheel base | 2394mm |
Wheels |
Wheels type | PU |
Wheel quantity Driving wheel/Balance wheel /Bearing wheel | 1/4/8 |
Driving wheel size | Φ248mmX75mm |
Bearing wheel size | Φ115mmX55mm |
Balance wheel size | Φ82mmX50mm |
Dimension |
Min.fork lowered height | 85mm |
Max.fork lifting height | 205mm |
Max.lifting height | 120mm |
Qutside width between forks | 760mm |
Fork length | 2000mm |
Fork width | 230mm |
Fork thickness | 80mm |
Overall length | 2820mm/3236mm |
Overall width | 910mm |
Overall height(With handle) | 1455mm |
Overall height(Without handle) | 845mm |
Min.Turning radius | 2641mm/3053mm |
Min.Aisle width for pallets 1000x1200 | 4022mm/4439mm |
Performance |
Travel speed,laden/unladen | 5/6 km/h |
Lift speed,laden/unladen | 22/30 mm/s |
Lowering speed,laden/unladen | 35/30 mm/s |
Gradeability,laden/unladen | 3/7 % |
Electrical configuration |
Drive motor/Lift motor/Steering motor | AC3.0/DC2.2/DC0.3 |
Battery voltage/capacity | 24/270V/Ah(Lead-acid battery) | 24/200V/Ah(Lithium battery) |
Charger specification | 24/50 V/A | 24/100 V/A |
Brake | Electromagnetic/Regenerative |
Controller | QEXPEND |
Weight |
Battery weight | 247kg | 104kg |
Service weight with battery | 1097kg | 954kg |
Others |
Steering type | Electronic |
Drive control type | AC |
