Feature |

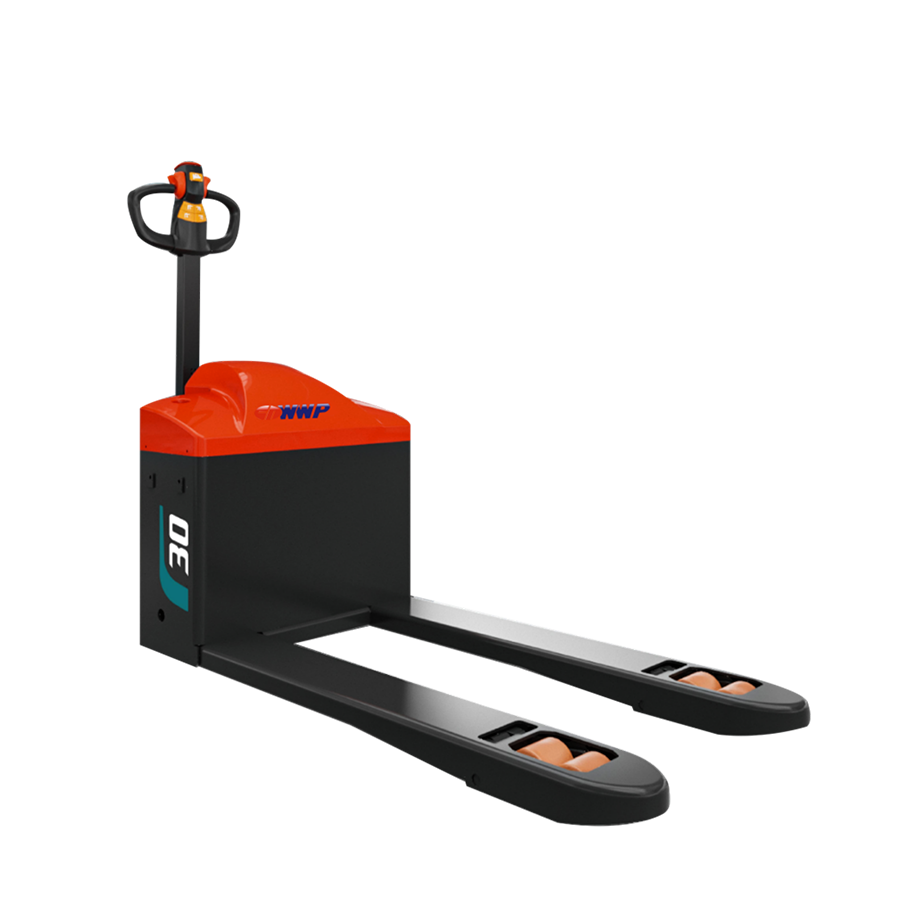

Model | CBD30-170HA |
Operating type | Pedestrian |
Load capacity | 3000kg |
Load center | 600mm |
Wheel base | 1380mm |
Wheels |
Wheels type | Driving:Rubber | Bearing:Nylon |
Driving/Bearing | 1X+0/4 |
Driving wheel size | Φ300mmx110mm |
Bearing wheel size | Φ84mmX80mm |
Dimension |
Min.fork lowered height | 85mm |
Max.fork lifting height | 205mm |
Max.lifting height | 120mm |
Qutside width between forks | 560mm/685mm |
Fork length | 1150mm/1200mm |
Fork width | 170mm |
Fork thickness | 75mm |
Overall length | 1723mm/1773mm |
Overall width | 697mm |
Overall height(With handle) | 1382mm |
Overall height(Without handle) | 838mm |
Min.Turning radius | 1578mm/1628mm |
Min.Aisle width for pallets 800x1200 | 1883mm/1933mm |
Min.Aisle width for pallets 1000x1200 | 1911mm/1961mm |
Performance |
Travel speed,laden/unladen | 3.5/4km/h |
Lift speed,laden/unladen | 17/23mm/s |
Lowering speed,laden/unladen | 35/30mm/s |
Gradeability,laden/unladen | 10/20% |
Service brake type | Electric |
Electrical configuration |
Traction motor rating at S2 60 min | BLDC 1.8kw |
Lift motor rating at S3 15% | DC 0.8kw |
Battery voltage / capacity | 48/30 (VRLA)V/AH | 48/65(Optional)V/AH |
Charger specification | 48/5V/A | 48/9V/A |
Weight |
Battery weight(±5%) | 9×4kg | 15×4kg |
Service weight with battery | 336kg | 360kg |
Others |
Steering type | Mechanical |
Drive control type | BLDC |
