Feature |

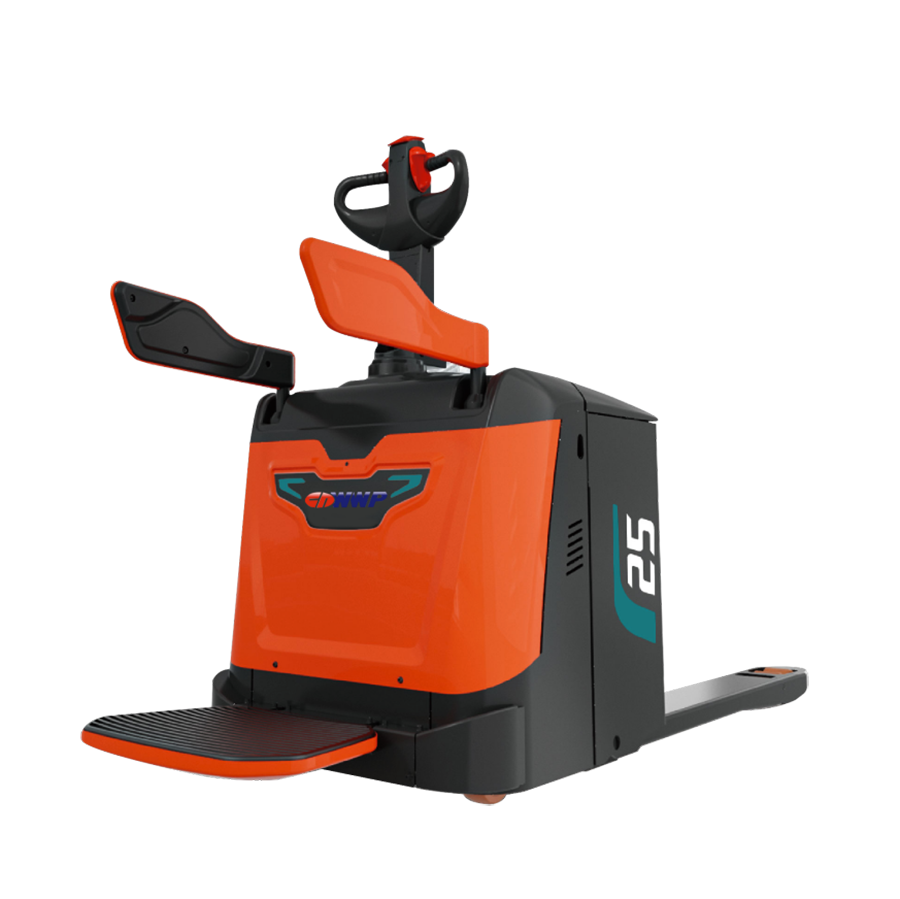

Model | CBD20/25-VRD | CBD30-VRD |
Operating type | Stand on |
Load capacity | 2000/2500 kg | 3000 kg |
Load center | 600 mm |
Wheel base | 1518 mm |
Wheels |
Wheels type | PU |
Wheel quantity (Driving/Balance/Bearing wheel) | 1/2/4 |
Driving wheel size | Φ248×75 mm |
Bearing wheel size | Φ84×80 mm |
Balance wheel size | Φ115×55 mm |
Dimension |
Min.Fork lowered height | 85 mm |
Max.Fork lifting height | 205 mm |
Max.Lifting height | 120 mm |
Outside width between forks | 550/685 mm |
Inside width between forks | 210/345 mm |
Fork length | 1200 mm |
Fork width | 170 mm |
Fork thickness | 55 mm |
Overall length | 2357 mm |
Overall width | 790 mm |
Overall height(With handle) | 1442 mm |
Overall height(Without handle) | 1025 mm |
Min.Turning radius | 1775/2175 mm |
Min.Aisle width for pallets 800×1200 | 2417/2817 mm |
Min.Aisle width for pallets 1000×1200 | 2510/2910 mm |
Performance |
Travelling speed,laden/unladen | 6/6 km/h |
Lifting speed,laden/unladen | 30/35 mm/s |
Lowering speed,laden/unladen | 40/35 mm/s |
Gradeability,laden/unladen | 6/16 % |
Service brake type | Electric |
Electrical configuration |
Traction motor rating at S2 60 min | AC 1.5 kW |
Lift motor rating at S3 15% | DC 2.2 kW |
Battery voltage / capacity | Lead-acid battery | Lithium battery(optional) |
24/270 V/Ah | 24/200 V/Ah |
Charger specification | 24/50 V/A | 24/100 V/A |
Weight |
Battery weight(±5%) | 247 kg | 105 kg |
Service weight with battery | 827 kg | 685 kg |
Other |
Steering type | Electronic |
Drive control type | AC |
Controller | QEXFEND |
