Feature |

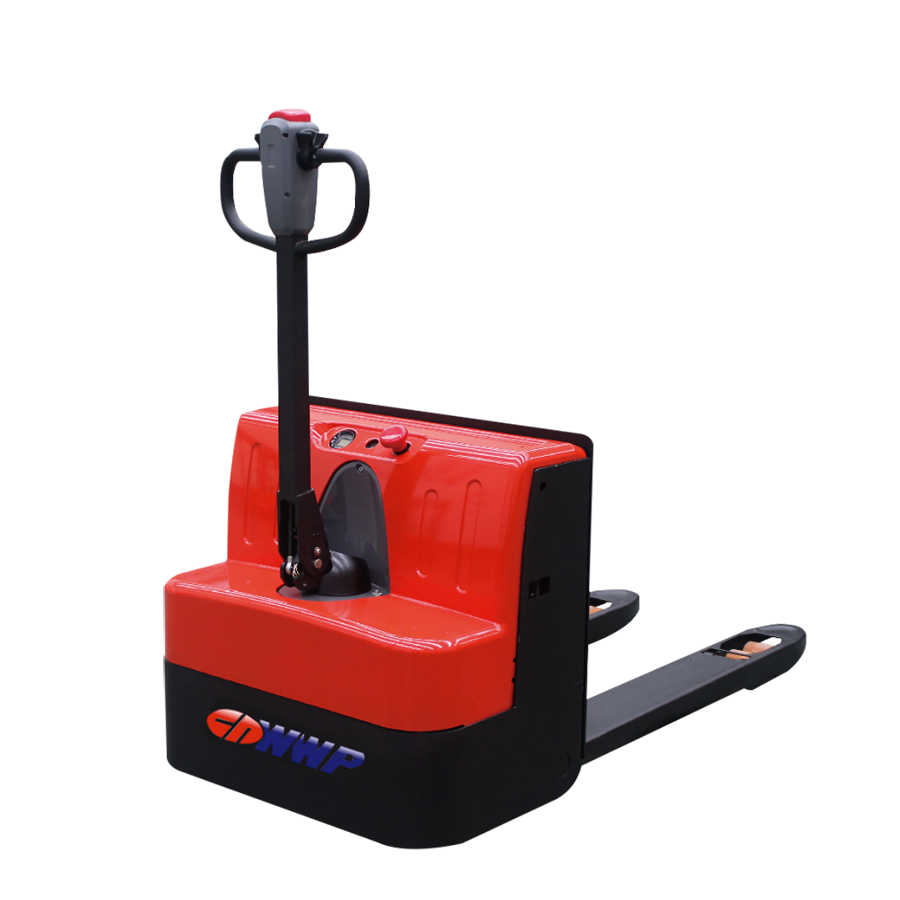

Model | CBD20 - 180E |
Operating type | Walkie |
Load capacity | 2000 kg |
Load center | 600 mm |
Wheel base | 1232 mm |
Wheels |
Wheels type (Front/Rear) | PU |
Wheel quantity (Driving/Balance/Bearing wheel) | 1/2/4 |
Driving wheel size | Φ180×70 mm |
Balance wheel size | Φ90×48 mm |
Bearing wheel size | Φ84×70 mm |
Dimension |
Min.fork lowered height | 85 mm |
Max.fork lifting height | 205 mm |
Max.lifting height | 120 mm |
Outside width between forks | 550/685 mm |
Inside width between forks | 240/365 mm |
Fork length | 1150/1200 mm |
Fork width | 160 mm |
Fork thickness | 55 mm |
Overall length | 1634/1684 mm |
Overall width | 650/785 mm |
Overall height(With handle) | 1283 mm |
Overall height(Without handle) | 756 mm |
Min.Turning radius | 1430/1475 mm |
Min.Aisle width for pallets 800×1200 | 1825 mm |
Min.Aisle width for pallets 1000×1200 | 1915 mm |
Performance |
Travel speed,laden/unladen | 4.5/5 km/h |
Lift speed,laden/unladen | 30/35 mm/s |
Lowering speed,laden/unladen | 40/30 mm/s |
Gradeability,laden/unladen | 6/10 % |
Electrical configuration |
Drive motor/Lift motor | AC1.2/DC0.8 KW |
Battery voltage / capacity | 24/100 V/Ah |
Charger specification | 24/15 V/A |
Controller | HELI |
Weight |
Battery weight | 60 kg |
Service weight with battery | 366 kg |
Other |
Noise level | ≤75 dB(A) |
Steering type | Mechanical |
Drive control type | AC |
