Characteristics |

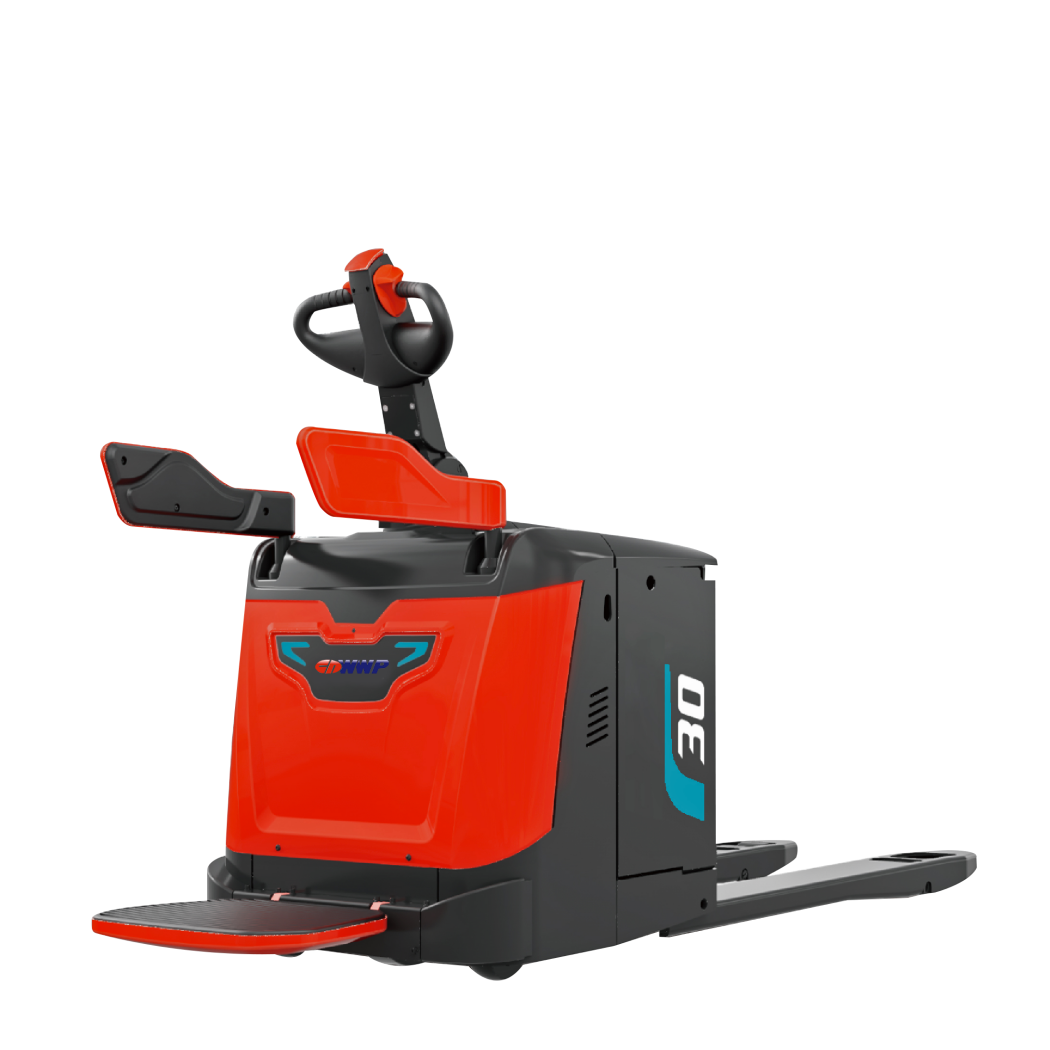

Model | CBD20/25-URD | CBD30-URD |
Load capacity | 2000/2500kg | 3000kg |
Load center | 600mm |
Wheel base | 1530mm |
Operating type | Riding style |
Wheels |
Wheels type | PU |
Wheel quantity Driving wheel/Balance wheel / Bearing wheel | 1/2/4 |
Driving wheel size | Φ248mmX75mm |
Bearing wheel size | Φ84mmX80mm |
Balance wheel size | Φ115mmX55mm |
Dimensions |
Min.fork lowered height | 85mm |
Max.fork lifting height | 205mm |
Max.lifting height | 120mm |
Qutside width between forks | 540/685mm |
Inside width between forks | 210/345mm |
Fork length | 1200mm |
Fork width | 170mm |
Fork thickness | 55mm |
Overall length | 2375mm |
Overall width | 790mm |
Overall height(With handle) | 1442mm |
Overall height(Without handle) | 1025mm |
Min.Turning radius | 1780mm/2192mm |
Min.Aisle width for pallets 800x1200 | 2422mm/2834mm |
Min.Aisle width for pallets 1000x1200 | 2515mm/2937mm |
Performance |
Travel speed,laden/unladen | 6/6km/h |
Lift speed,laden/unladen | 30/35 mm/s |
Lowering speed,laden/unladen | 40/35 mm/s |
Gradeability,laden/unladen | 6/16 % |
Service brake type | Electric |
Electrical configuration |
Traction motor rating at S2 60 min | AC1.5 kW |
Lift motor rating at S3 15% | DC 2.2 kW |
Brake | Electromagnetic / Regenerative |
Battery voltage/capacity | Lead-acid battery | Lithium battery (optional) |
24/270 V/Ah | 24/200 V/Ah |
Charager specification | 24/25 V/A | 24/100 V/A |
Weight |
Battery weight | 247kg | 105kg |
Service weight(with battery) | 827kg | 685kg |
Others |
Controller | QEXPEND |
Steering type | Electronic |
Drive control type | AC |
