Feature |

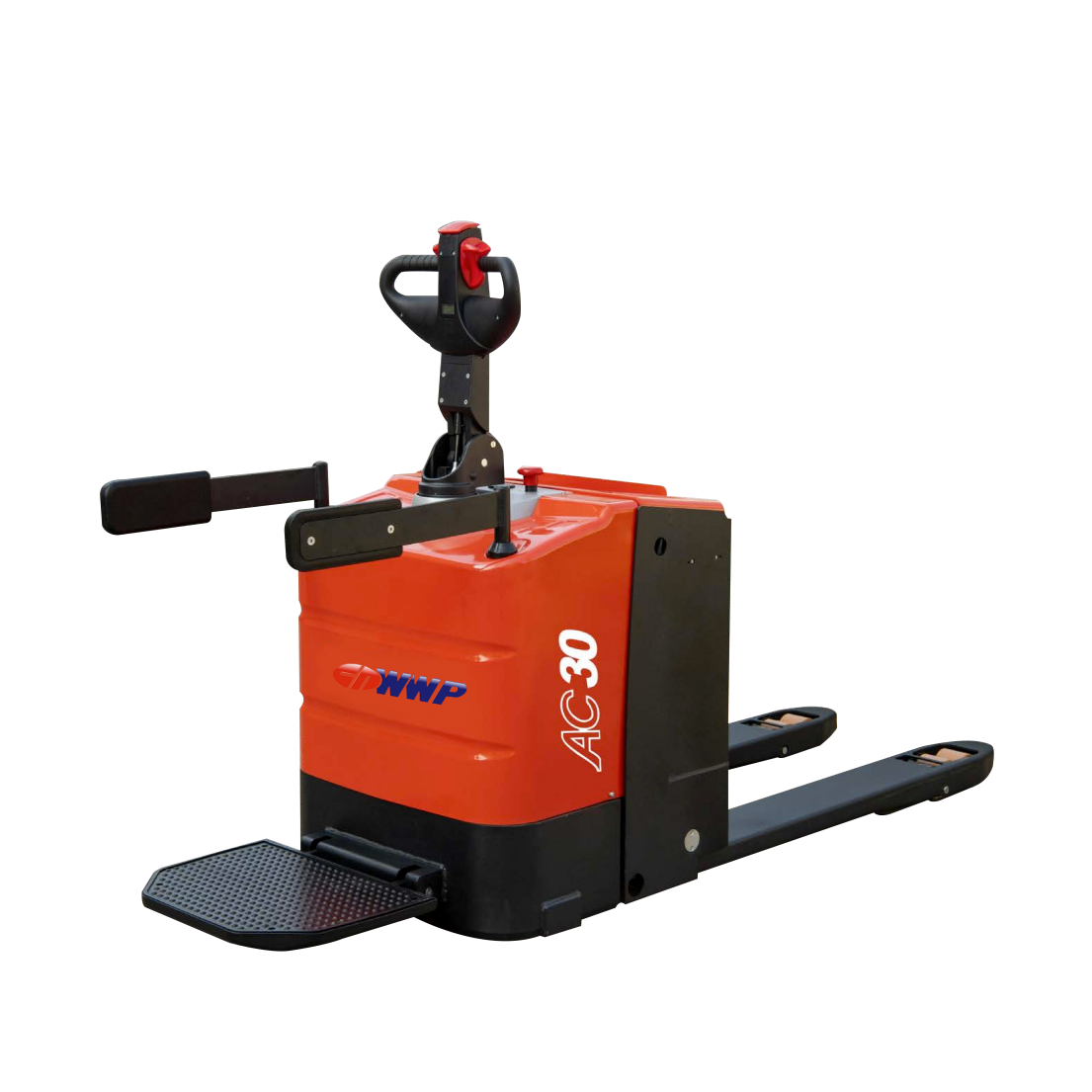

Model | CBD20/25/30 |
Configuration No. | 470 |
Load capacity | 2000/2500/3000kg |
Load center | 600mm |
Wheel base | 1480mm |
Operating type | Stand on |
Wheels |
Wheels type | PU |
Wheel quantity Driving wheel/Balance wheel / Bearing wheel | 1/2/4 |
Driving wheel size | Φ248mmX75mm |
Bearing wheel size | Φ84mmX80mm |
Balance wheel size | Φ115mmX55mm |
Dimension |
Min.fork lowered height | 85mm |
Max.fork lifting height | 205mm |
Max.lifting height | 120mm |
Qutside width between forks | 540/600/650/685mm |
Inside width between forks | 200/260/310/345mm |
Fork length | 1150mm/1200mm |
Fork width | 170mm |
Fork thickness | 75mm |
Overall length | 1920mm/2335mm |
Overall width | 720mm |
Overall height(With handle) | 1455mm |
Overall height(Without handle) | 900mm |
Min.Turning radius | 1735mm/2140mm |
Min.Aisle width for pallets 800x1200 | 2060mm/2451mm |
Min.Aisle width for pallets 1000x1200 | 2090mm/2468mm |
Performance |
Travel speed,laden/unladen | 6/6km/h |
Lift speed,laden/unladen | 30/35 mm/s |
Lowering speed,laden/unladen | 40/35 mm/s |
Gradeability,laden/unladen | 6/16 % |
Electrical configuration |
Driver motor / Lift motor / Steering motor | AC1.5 / DC1.2(2/3T2.2) /DC0.3 |
Brake | Electromagnetic / Regenerative |
Battery | Lead-acid battery | Lithium battery (optional) |
Battery voltage/capacity | 24/280 V/Ah | 24/200 V/Ah |
Controlller | QEXPEND | QEXPEND |
Battery weight | 238kg | 104kg |
Service weight(with battery) | 748kg | 613kg |
