Feature
|

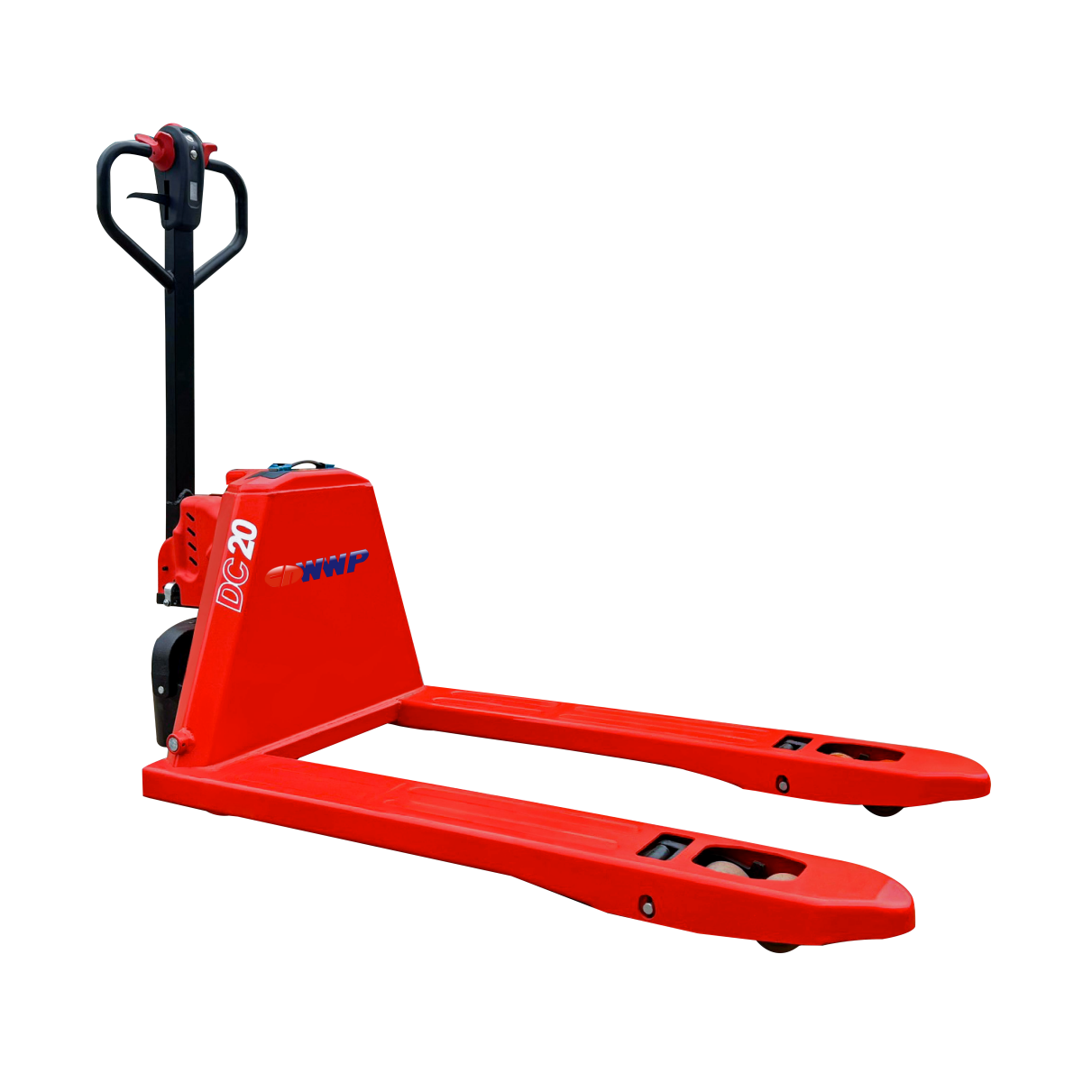

Model
| CBD15-TBLi
| CBD20-TBLi
|
Operating type
| Walkie
|
Load capacity
| 1500kg
| 2000kg
|
Load center
| 600mm
|
Wheel base
| 1170mm/1100mm
|
Wheels
|
Wheels type
| PU
|
Wheel quantity no.(x=driven)front/rear
| 1x+/4(1x+/2 Single wheel Low-profile)
|
Driving wheel size
| Φ170mmX53mm
|
Bearing wheel size
| Φ80mmX61mm Dual wheel (Φ74mmX88mm Single wheel)
|
Balance wheel size
| Φ74mmX30mm (Optional)
|
Dimension
|
Min.fork lowered height
| 82mm/78mm (Low-profile)
|
Max.fork lifting height
| 197mm
|
Max.lifting height
| 115mm
|
Qutside width between forks
| 560mm/685mm
|
Inside width between forks
| 260mm/385mm
|
Fork length
| 1150mm/1220mm
|
Fork width
| 150mm
|
Fork thickness
| 55mm
|
Overall length
| 1590mm
|
Overall width
| 560mm/685mm
|
Overall height(With handle)
| 1180mm
|
Overall height(Without handle)
| 600mm
|
Min.Turning radius
| 1385mm
|
Min.Aisle width for pallets 800x1200
| 2110mm
|
Min.Aisle width for pallets 1000x1200
| 2200mm
|
Performance
|
Travel speed,laden/unladen
| 4.2/4.8km/h
| 4/4.5km/h
|
Lift speed,laden/unladen
| 27/38/ mm/s
| 25/35 mm/s
|
Lowering speed,laden/unladen
| -
| -
|
Gradeability,laden/unladen
| 8/16 %
|
Service brake type
| Electric
|
Electrical configuration
|
Traction motor rating at S2 60 min
| BLDC 0.75 kw
| BLDC 0.9 kw
|
Lift motor rating at S3 15%
| DC 0.7 kw
| DC 0.8 kw
|
Battery voltage / capacity
| 48/10 V/AH (48/15 Optional)
| 48/15 V/AH
|
Charger specification
| 48/5 V/A
|
Weight
|
Battery weight(±5%)
| 5kg
|
Service weight with battery
| 115kg
| 120kg
|
Others
|
Sound level
| ≤74
|
Steering type
| Mechanical
|
Drive control type
| BLDC
|
