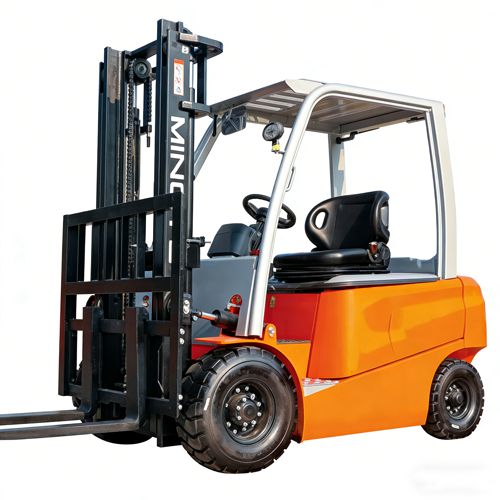

2.0 Ton Lithium Battery Forklift 13kw Motor 15km/h Electric Forklift for Material Handling-B20

SELECT

Quantity :

Rental Service
Local After-sales Service
One-stop Sales Service
OEM/ODM Service

Power	Lithium battery
Rated lifting capacity	2000kg
Load center distance	500mm
Operation mode	RIDE-ON
Length(With fork)	3395mm
Length(Without fork)	2310mm
Width	1100mm
Height of non-lifting gantry	2035mm
Height of roof guard	1955mm
Max. height during operation	4110mm
Wheelbase	1520mm
Front overhang	370mm
Rear overhang	380mm
Front track width	965mm
Rear track width	958mm
Ground clearance	90mm
Minimum turning radius	2100mm
Lift Height	3000mm
Fork adjustment range	260-1100mm
Gantry inclination angle	5/10°
Max. lifting speed (no load)	325mm/s
Max. lifting speed (full load)	250mm/s
Max. operating speed(no load)	15km/h
Max. operating speed(full load)	14km/h
Max. gradeability (full load)	15%
Overall weight	2780kg
Number of wheels	2/2
Tyre	Inflation
Front Tyre size	6.5-10
Rear Tyre size	5.00-8
Service Brakes	foot brake
Parking Brakes	hand brake
Drive motor power	13kw
Pump Motor Power	13kw
