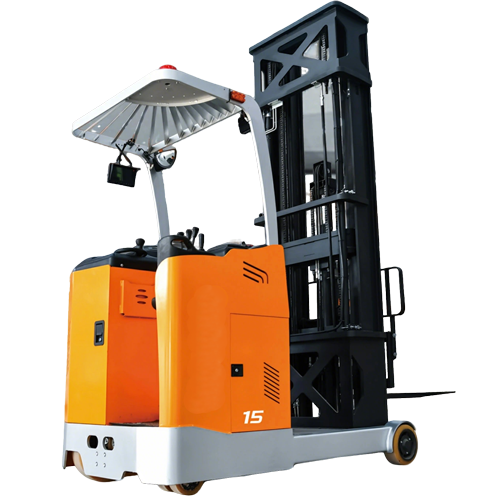

Name: CQD15 1.5 Ton Stand-on Electric Reach Forklift | 4500mm Lift Height | 48V Lithium Battery | PU Wheel Warehouse Reach Truc
Brand: 山东明宇
SKU: 103
Availability: InStock

Whatsapp:+86 15151611899 +966 562197876

Localized Services

Source Manufacturer

English

中文简体

ภาษาไทย

اللغة العربية

HOT PRODUCTS

CQD15 1.5 Ton Stand-on Electric Reach Forklift | 4500mm Lift Height | 48V Lithium Battery | PU Wheel Warehouse Reach Truc

SELECT

Quantity :

Rental Service
Local After-sales Service
One-stop Sales Service
OEM/ODM Service

Model No.	CQD15-45S
Power type	Electric
Load capacity	1500 kg
Load center	500 mm
Operation type	Stand Type
Overall length (With fork)	2400 mm
Overall length (Without fork)	1752 mm
Overall width	1195 mm
Fork face min.ground clearance	2100 mm
Free lift height	1500 mm
Lift height	4500 mm
Max.height when lifting	5480 mm
Height of overhead guards	2280 mm
Wheelbase	1383 mm
Reach distance	500 mm
Min.ground clearance	80 mm
Min.turning radius	1680 mm
Fork tilting angle Front/rear	3/5°
Lifting speed (unload)	330 mm/s
Lifting speed (load)	245 mm/s
Max.travel speed (unload)	8 km/h
Max.travel speed (load)	7 km/h
Max.grade ability	≤10%
Total weight with battery	2700 kg
Wheel type	Polyurethane PU
Front wheel	267*114
Drive wheel	382*142
Balance wheel	180*76
Wheel tread, Front wheel	1081 mm
Brake type	ELEC
Driving motor	4.5 kw
Lifting motor	6.3 kw
Battery capacity	48V/280Ah
Charger	48V/100A
